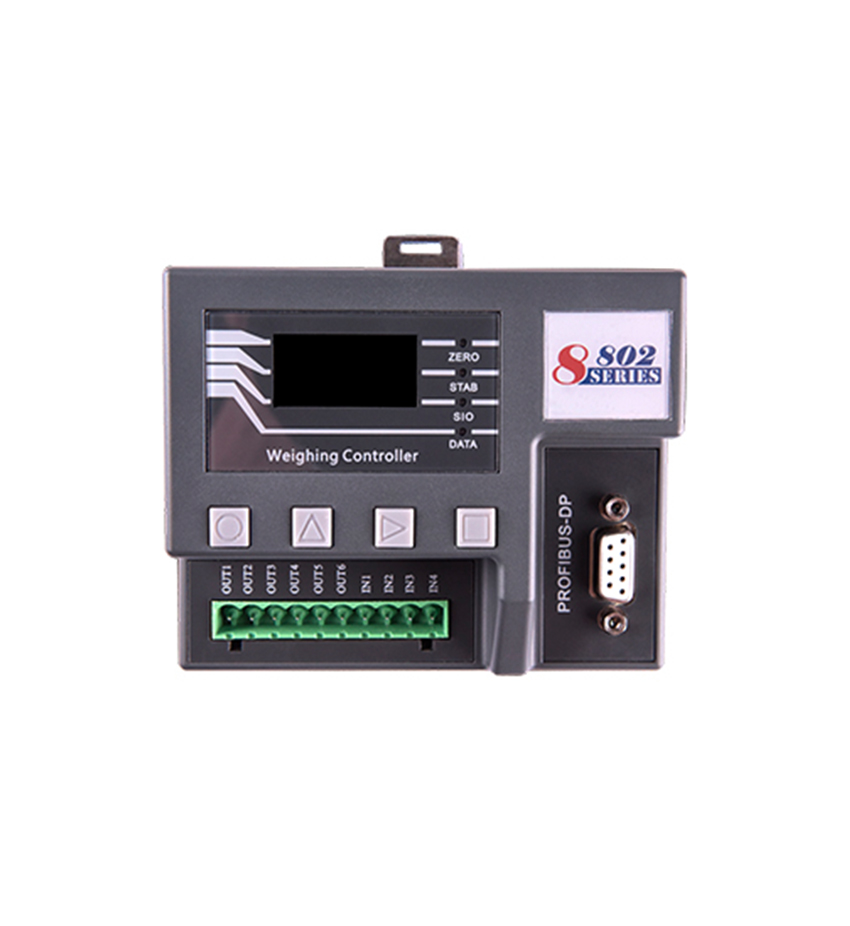

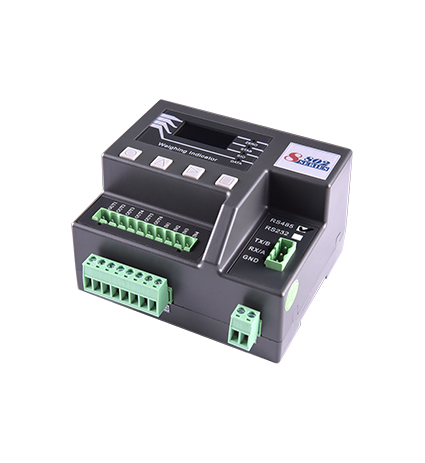

Check Weigher Controller GM8802S-C with Touch Screen



GM8802S-C is a compact check weigher control module with the DIN rail mount installation method. It has an OLED display. The WEINVIEW 7-inch or 10-inch touch screen is the optional selection. It is suitable for weight checking or sorting in the production process of various industries, such as logistics, chemical, food, pharmaceutical, and electronics industries, and so on.

ENQUIRE
  • Man Machine Design

    Man Machine Design

  • High Accuracy

    High Accuracy

  • Highly Integrated

    Highly Integrated

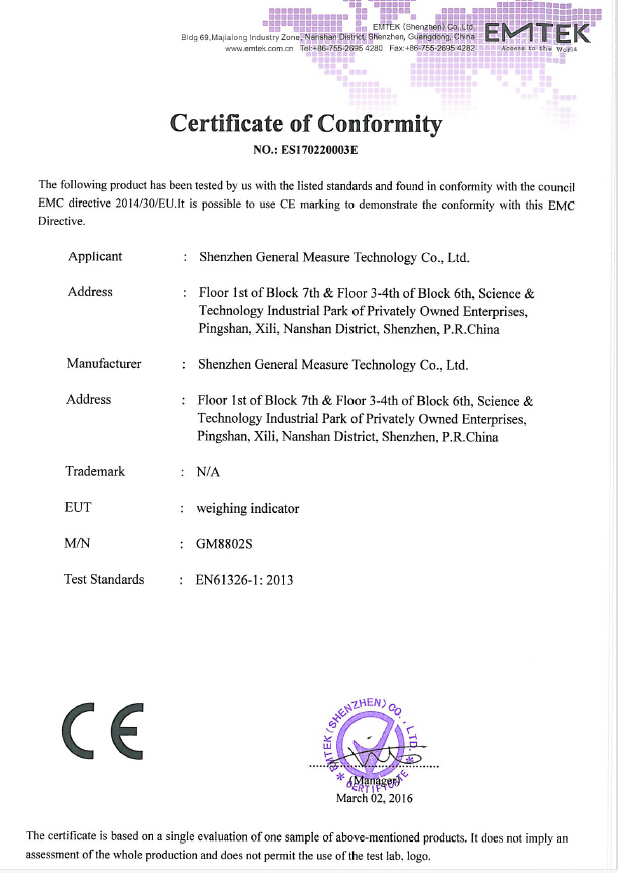

  • CE Approve

    CE Approve

  • Compact Design

    Compact Design

PRODUCT ENQUIRE


Product Functions

  • Two working modes: weight checking or weight sorting, maximum support for 5 levels of sorting;

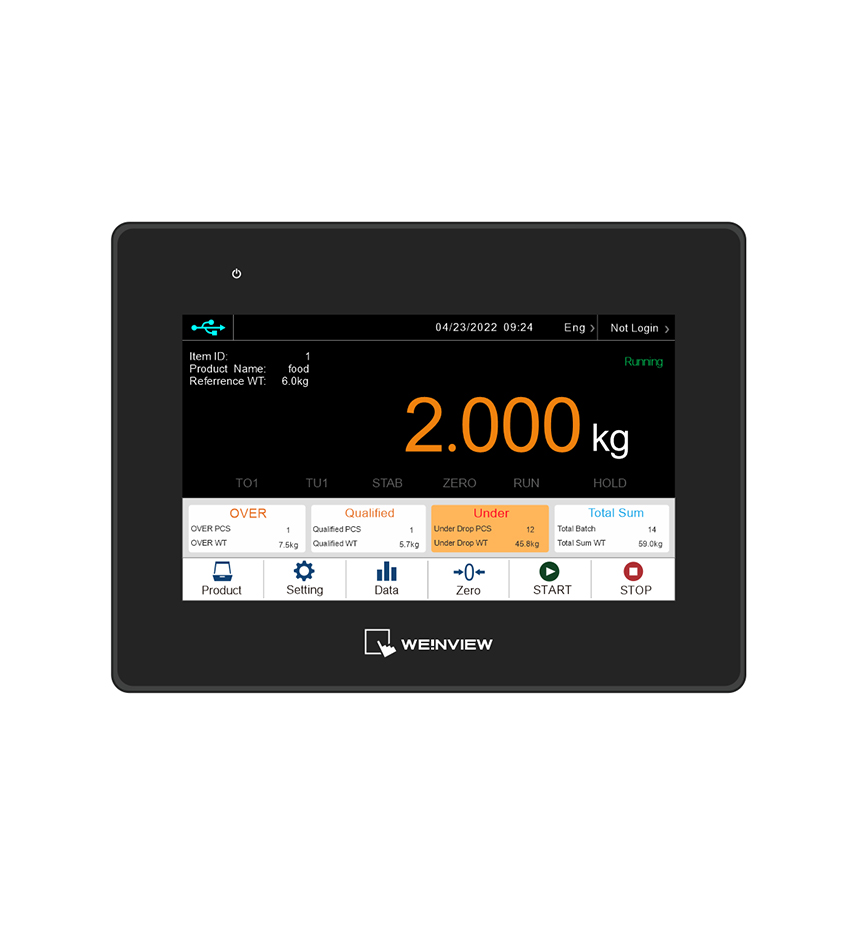

  • DIN rail mount installation, OLED display, Optional WEINVIEW 7-inch or 10-inch touch screen;
  • The belt speed can be automatically adjusted by inputting the detection speed of the measured object;
  • Dynamic compensation coefficient for the weight of the measured object;
  • Support zero zone or switch quantity detection to identify the measured object on the scale.



Hardware Interface

  • RS485 Communication;
  • I/O Communication, 4 input, 6 output;
  • Optional RS232 Communication;
  • Optional communication extension.
