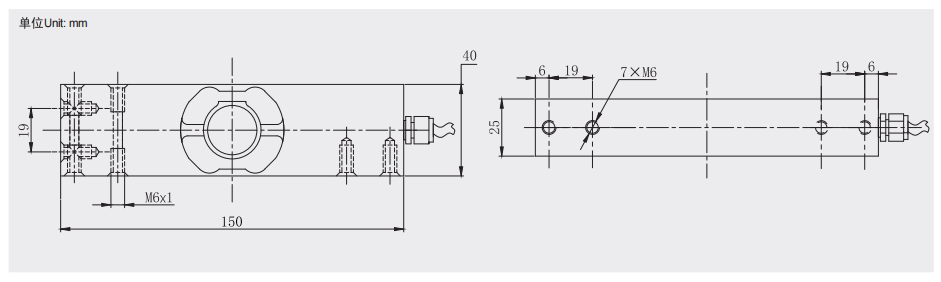

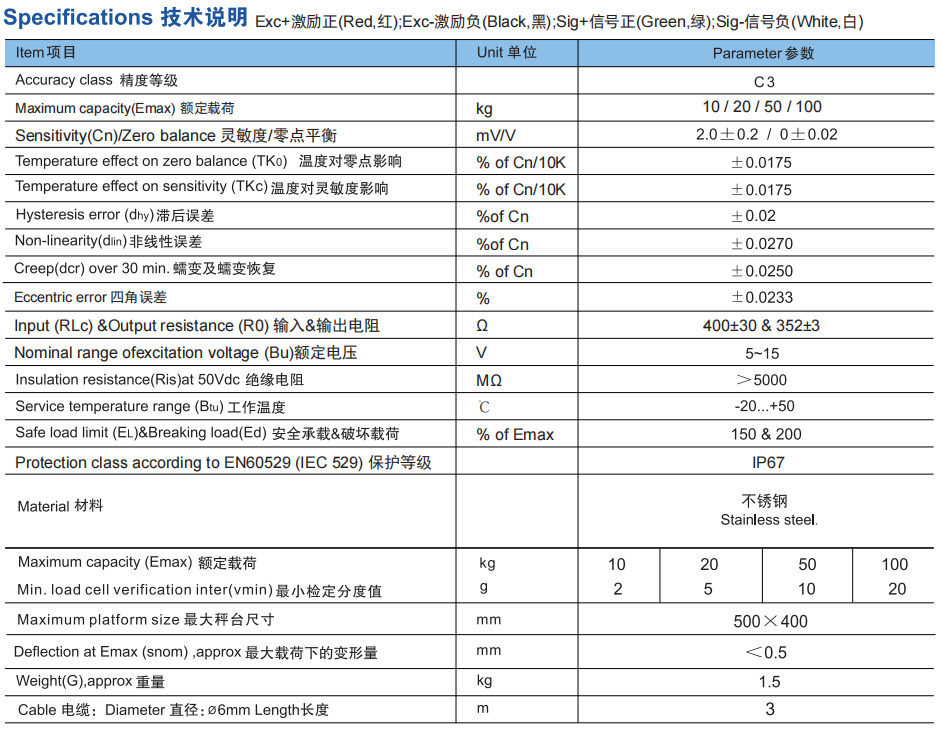

GM Load Cell GML-D6 845 Series



The robust and well-designed load cell from General Measure, with the C3 grade accuracy. GML-D6 845 Series single-point load cell is made of alloy steel, which is IP65 protection. The weighing capacity is from 10kg to 100kg, usually used for industrial platforms and belt scales. It has a compact design and easy installation that fulfills the minimum height requirement.

ENQUIRE

PRODUCT ENQUIRE


Weighing Capacity

  • 10kg
  • 20kg
  • 50kg
  • 100kg



IP65



Multiple Applications

  • Industrial platform scales
  • Belt scales
