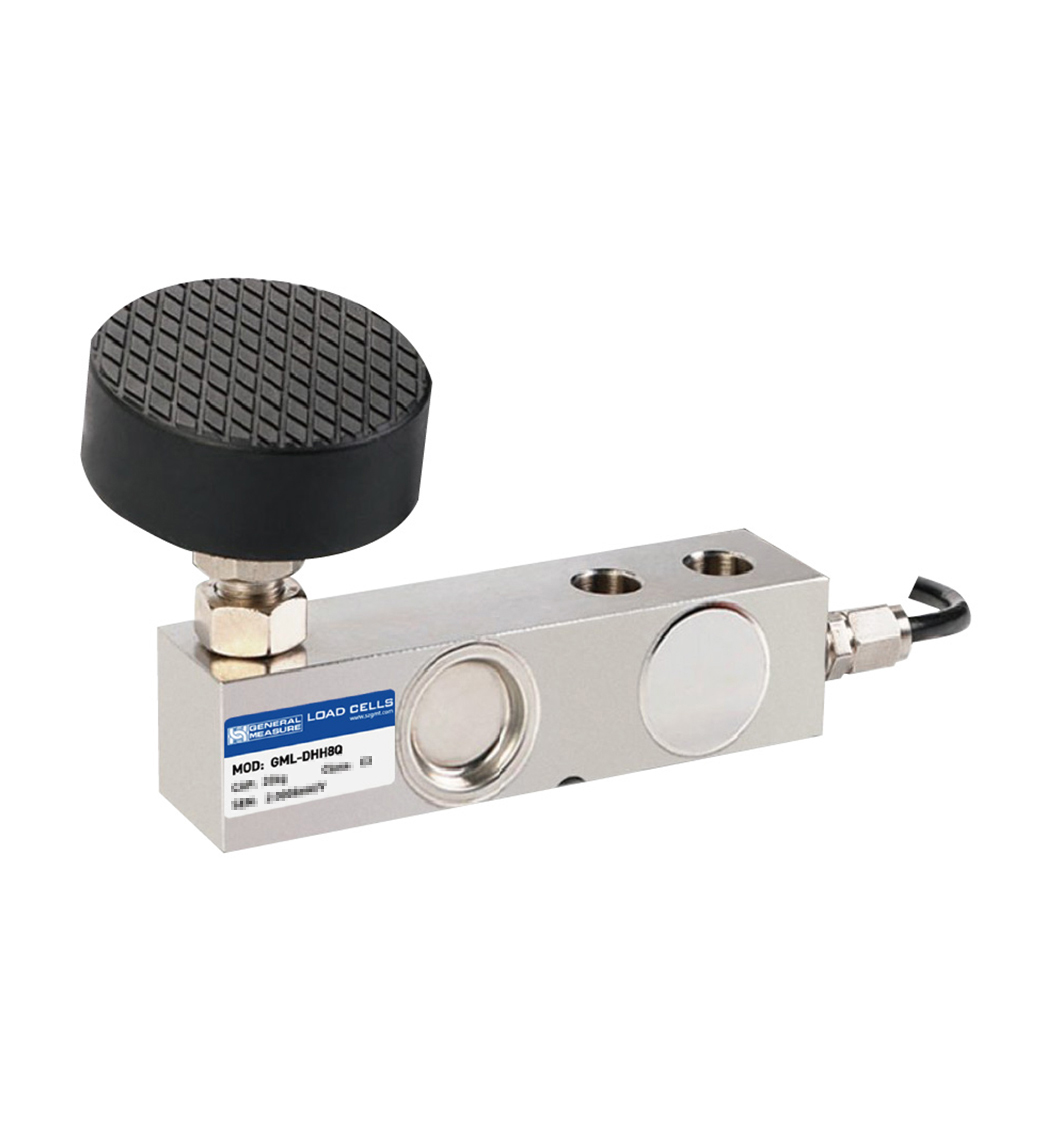

GM Load Cell GML-DHH8Q



The robust and well-designed load cell from General Measure, with the C1/C3 grade accuracy. GML-DHH8Q shear beam load cell has the material option of alloy steel and stainless steel. It is compact and easy to install. The weighing capacity is from 500kg to 10000kg, which is usually used for floor scale, batching silo, and industrial platform scale. It can fulfill a wide range of industries that require accurate measurements, avoiding product waste and saving costs.

ENQUIRE

PRODUCT ENQUIRE


Weighing Capacity

  • 500kg
  • 1000kg
  • 2000kg
  • 2500kg
  • 3000kg
  • 15000kg
  • 7500kg
  • 10000kg



IP67/IP68



Operating Functions

  • With overload stop and stay rod
  • Self-restoring due to pendulum bearing



Multiple Applications

  • Floor scale
  • Industrial platform scale
  • Batching silo
