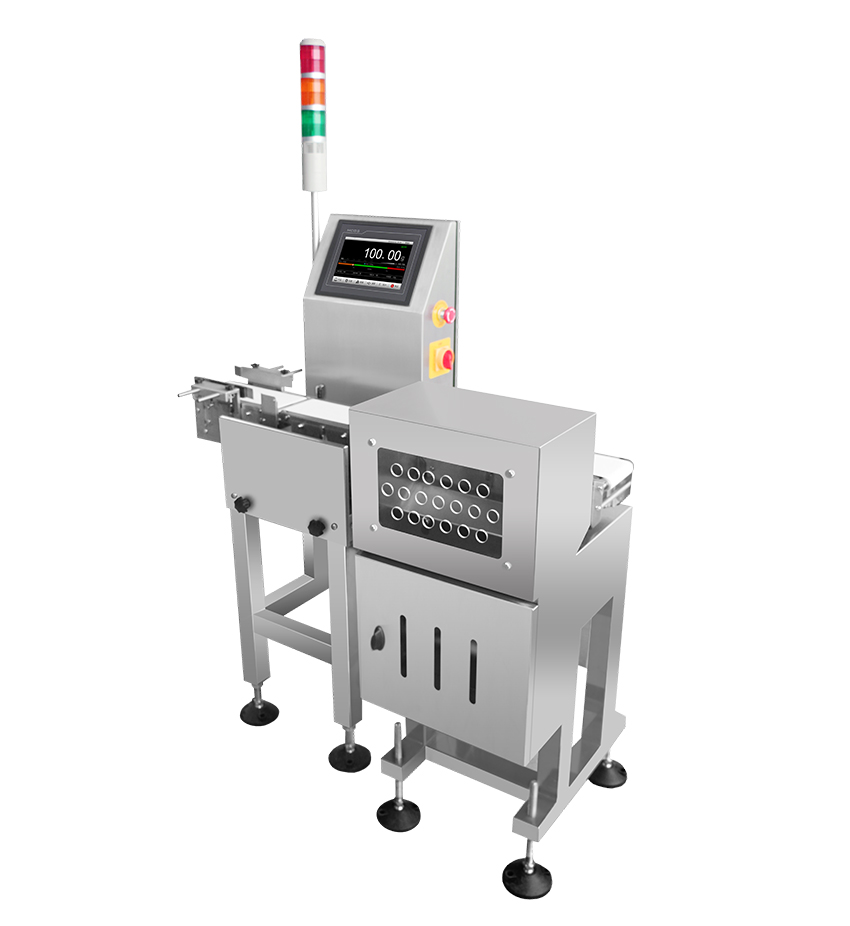

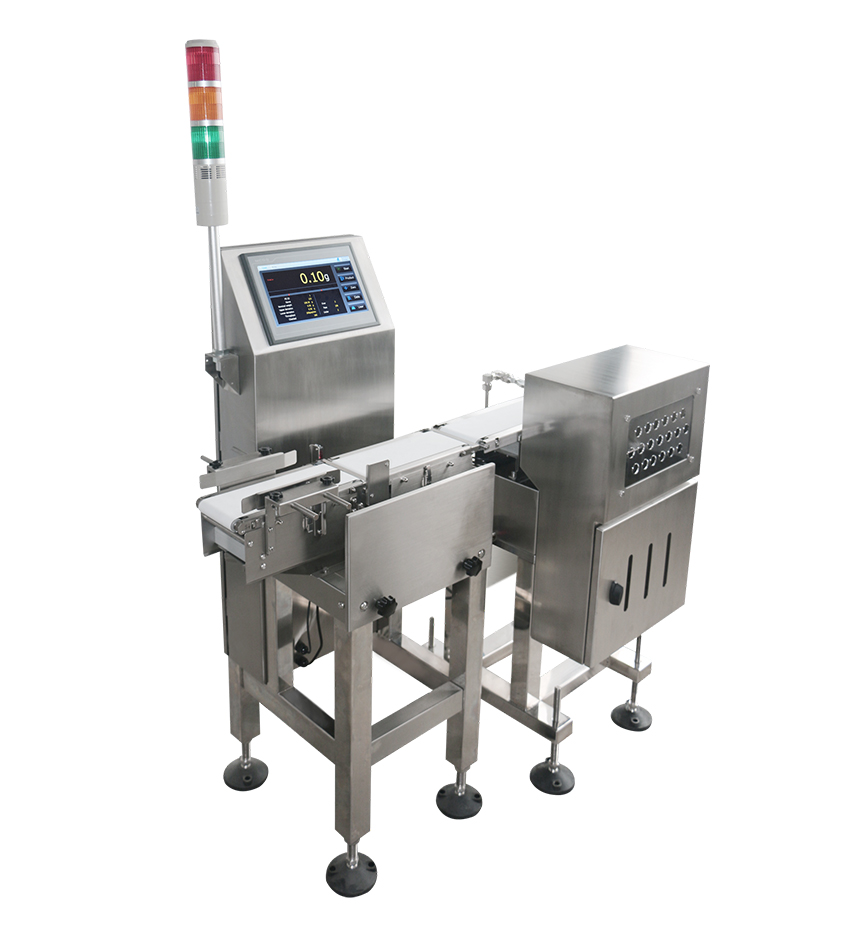

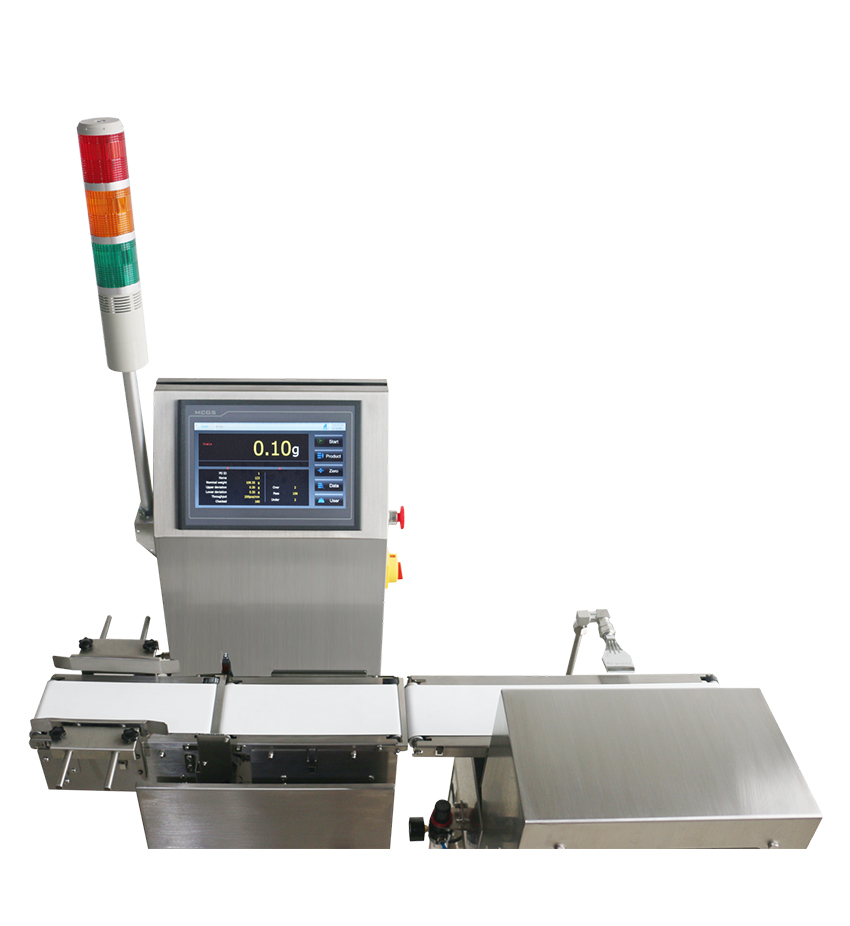

GM ChexGo CW-100G Checkweigher

Sophistication and efficiency with increased precision

CW-100G, an automatic checkweigher is made of premium stainless steel complying with the newest electrical safety regulations, which meets the highest demands for safety, easy usage and simple maintenance in the pharmaceutical industry. The belt system can be changed easily and quickly.

ENQUIRE

IP 65
Man Machine Design
Highly Integrated
Anti-Vibration
EMC Testing Passed
CE Approve
Advanced Digital Filtering

PRODUCT ENQUIRE

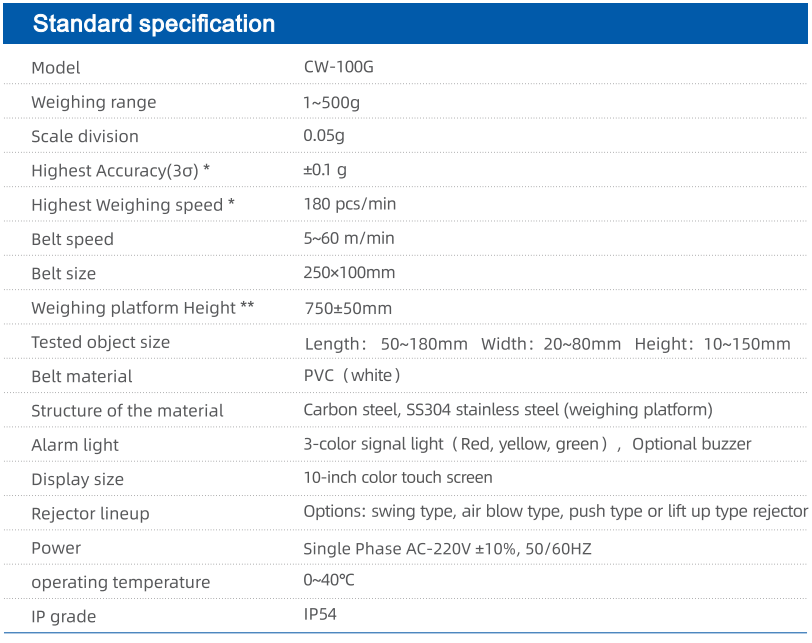

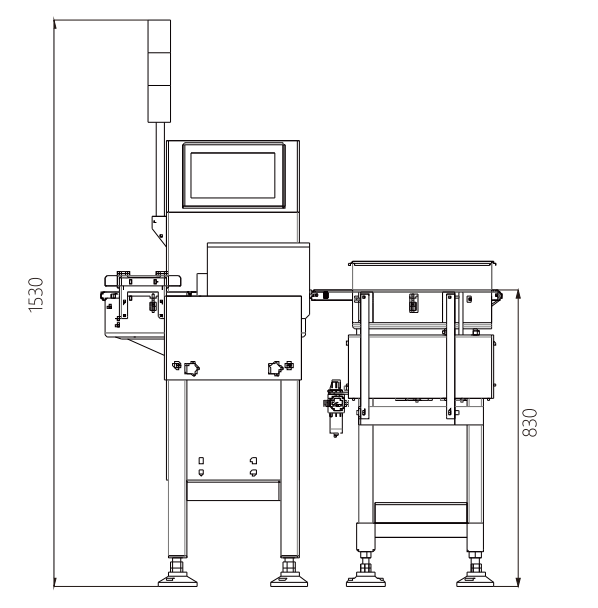

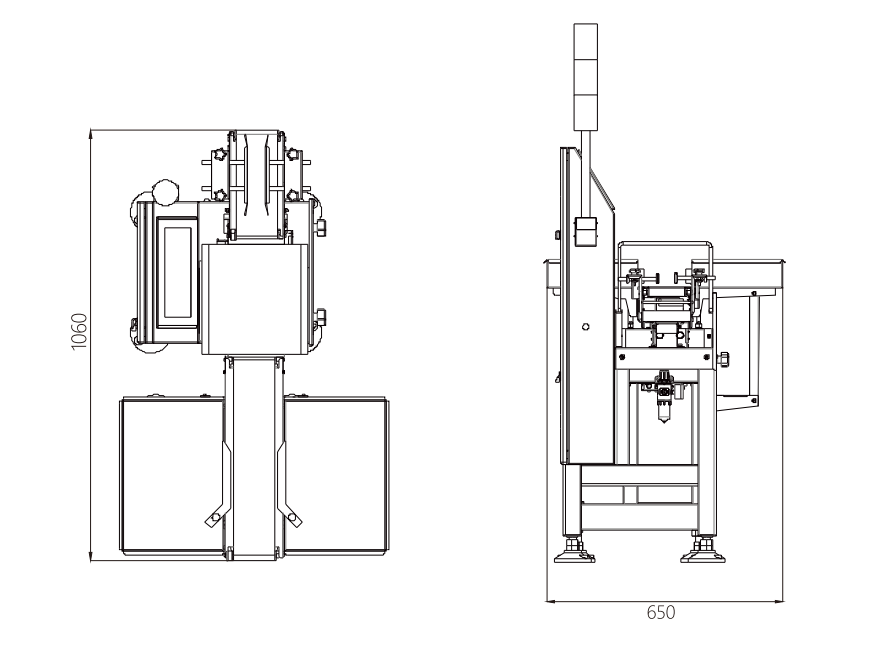

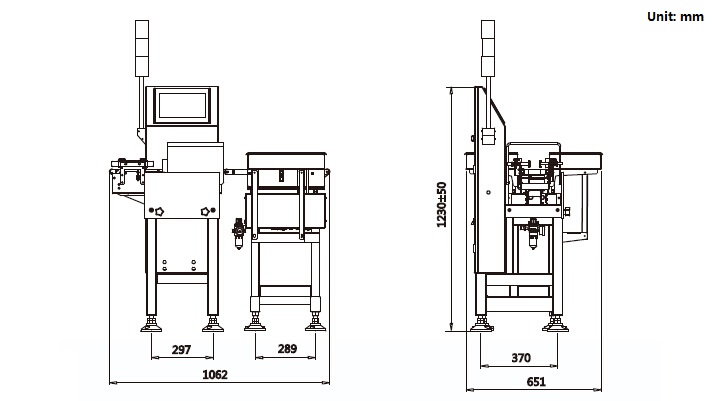

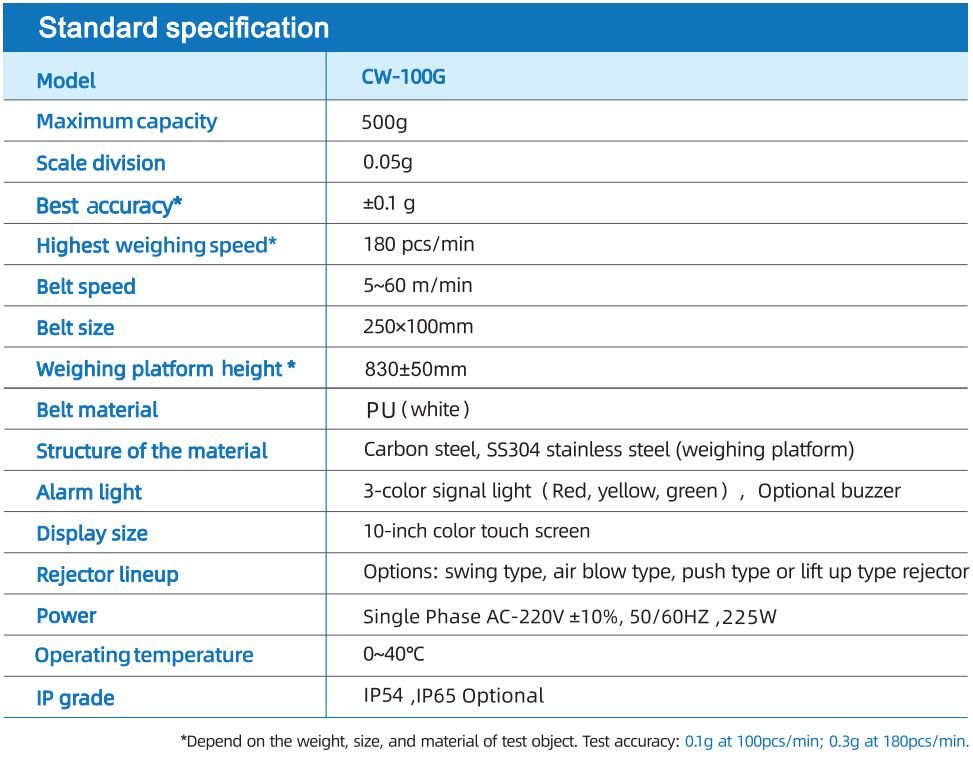

Key Features Specification Dimension Certificates Documentary

User Friendly

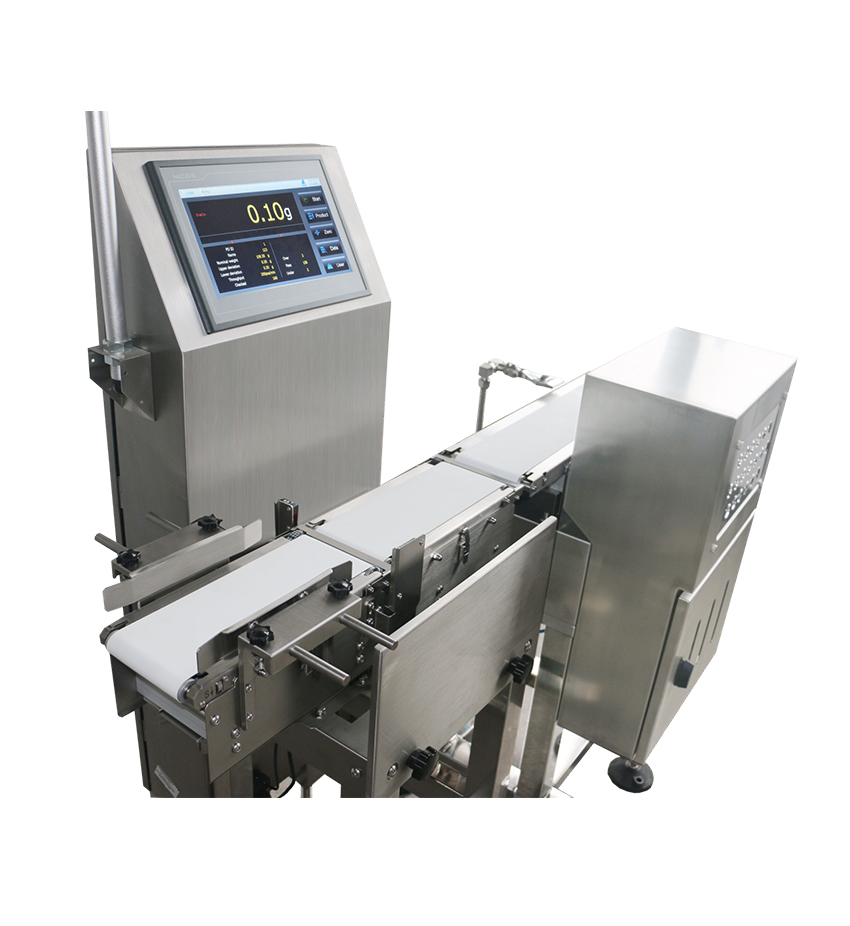

High visibility 10inch TFT screen with graphic user interface
Automatic weighing compensation and zero tracking
Automatic measuring time adjustment

Flexible Product Adjustment

Bag or case weighing up to 600g (Best performance with 100g)
Easy integration in almost every production line

Effective Product with High Accuracy

Excellent accuracy, especially with flexible packaging
1,000,000pcs weight value for production statistics
Data storage and data printout ready
Continuously variable belt speed control

Developed Functionality

Designed for control of packaged and unpackaged goods
Heavy duty conveyor components, high quality electronics
Statistics programs for evaluation

Safety Design

Continuously variable belt speed control

ChexGo Catalog

ChexGo CW-100G Catalog
