GM ChexGo CW-60K | Checkweigher | General Measure Technology

GM ChexGo CW-60K Checkweigher

With 100% in-line control weight capacity

CW-60K, an automatic checkweigher integrated the new dynamic weighing technology offers a high precision solution in weighing system to a wide range of industries, such as food, grain, fertilizer and cement, especially to logistics regarding to heavy load production line.

ENQUIRE

IP 65
Man Machine Design
High Accuracy
Anti-Vibration
EMC Testing Passed
CE Approve
Advanced Digital Filtering

PRODUCT ENQUIRE

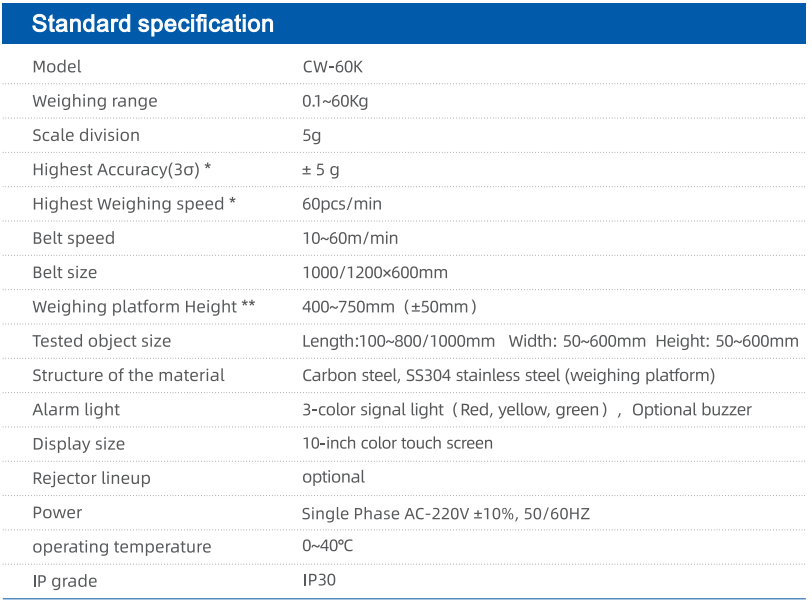

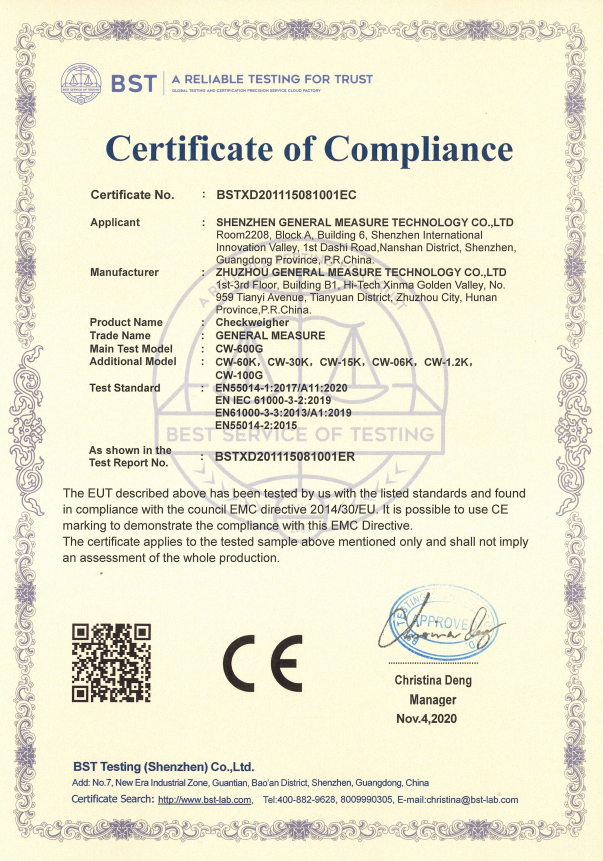

Key Features Specification Dimension Certificates Documentary

User Friendly

High visibility 10inch TFT screen with graphic user interface
Easy cleaning thanks to removable assemblage
Indicator light

Flexible Product Adjustment

Bag or case weighing up to 60kg
Easy integration in almost every production line
Anti-vibration legs with height adjustment
Integrated entry conveyor and exit conveyor
Automatic measuring time adjustment
RS485 and Ethernet connection

Effective Product with High Accurary

Excellent accuracy in flexible packaging
Making product identification fast and simple
1,000,000pcs weight value for production statistics storage
Continuously variable belt speed control

CW-60K User Manual

ChexGo Catalog

ChexGo CW-60K Catalog
