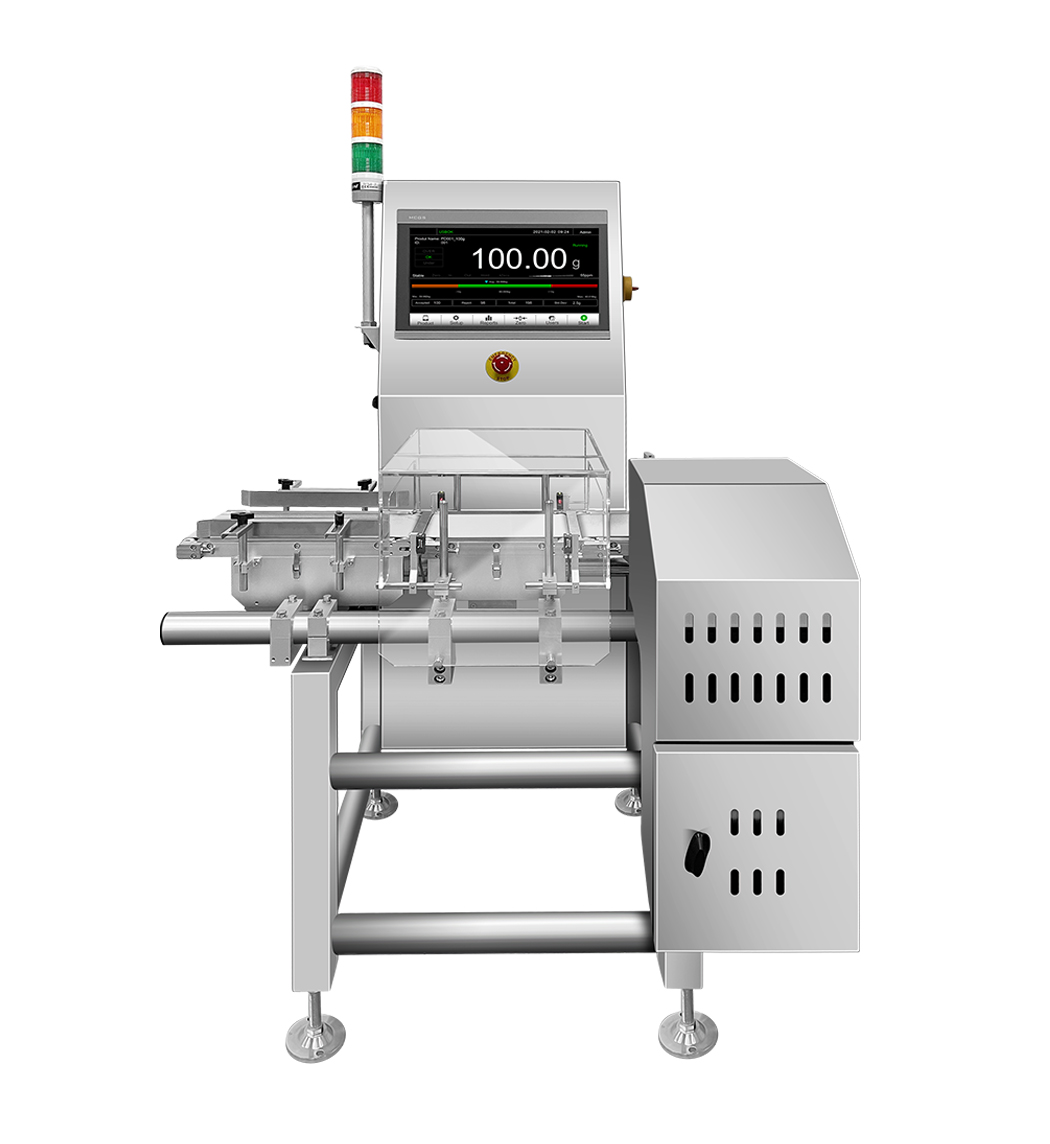

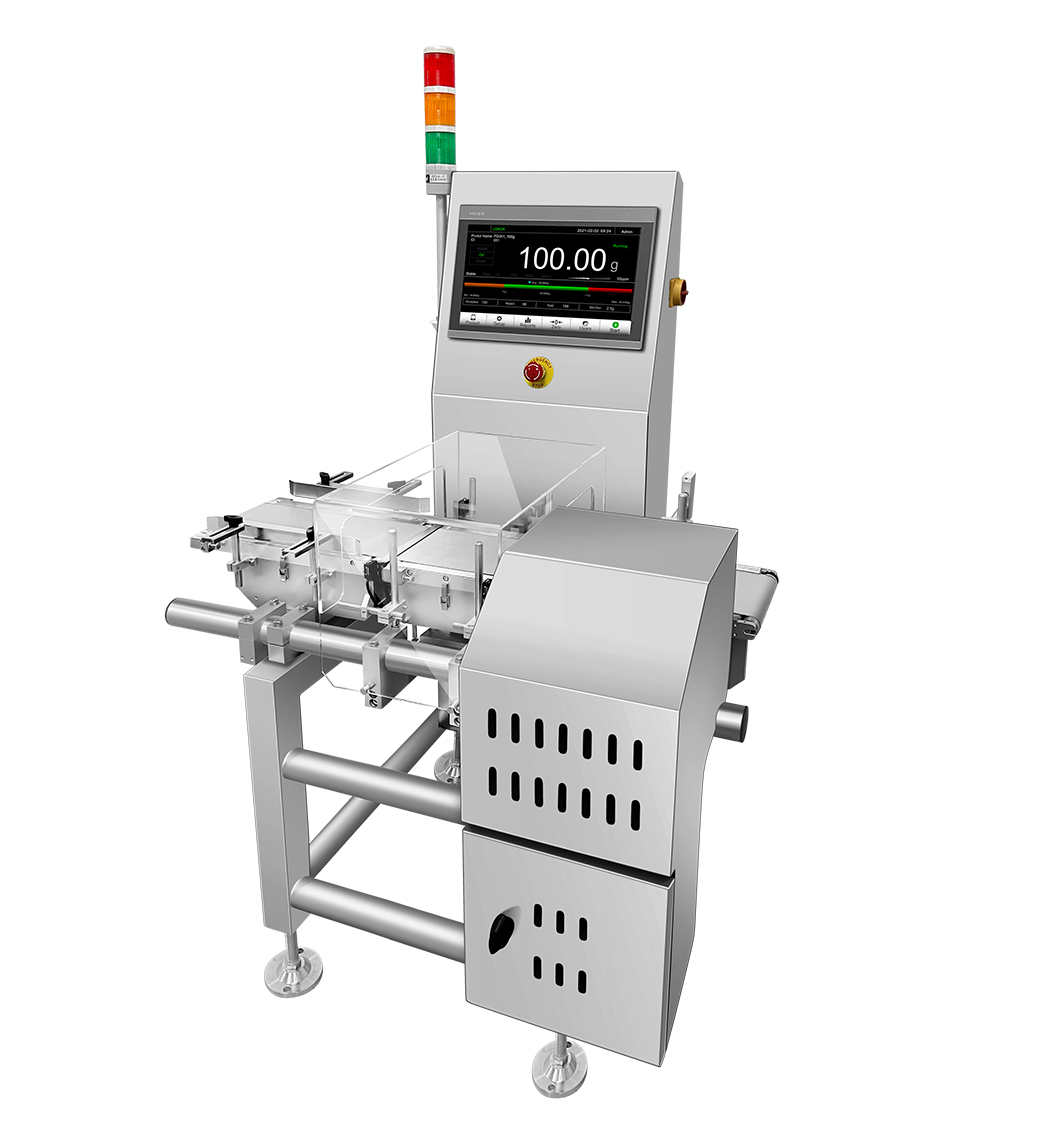

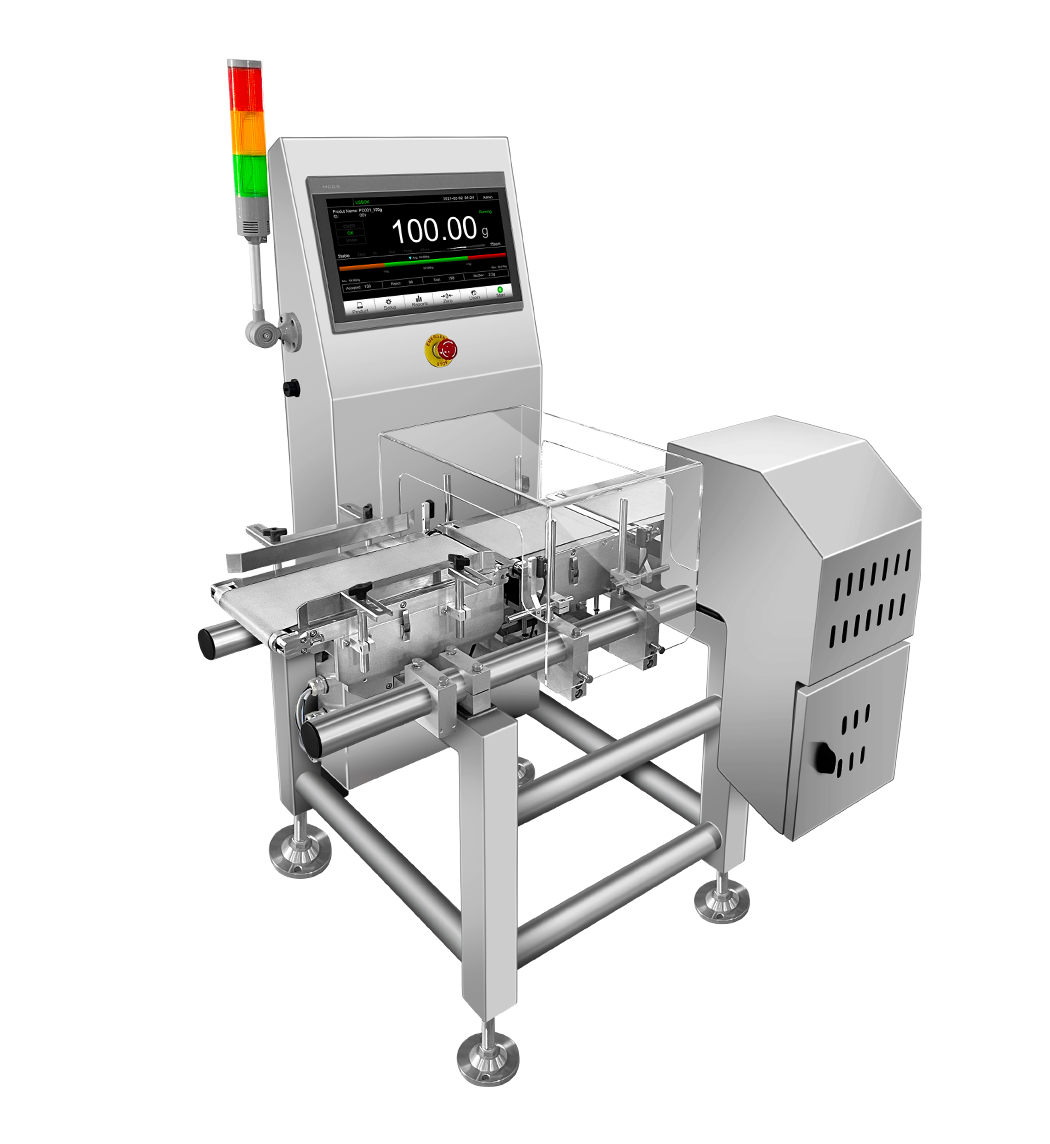

GM ChexGo CW-100G Pro Checkweigher

Sophistication and efficiency with increased precision

CW-100G Pro, an automatic checkweigher is made of premium stainless steel complying with the newest electrical safety regulations, which meets the demands for safety, high accuracy, and high speed. It is easy to use, and simple to maintain in the food and pharmaceutical industry.

ENQUIRE
  • IP 65

    IP 65

  • Man Machine Design

    Man Machine Design

  • High Accuracy

    High Accuracy

  • CE Approve

    CE Approve

PRODUCT ENQUIRE


Core Components

  • MCGS 15-inch Touch Screen
  • XINJE Servo Motor
  • HBM Load Cell
  • Schneider Electronic
  • FESTO Solenoid Valve
  • NSK Bering

User Friendly

  • High visibility 15inch TFT screen with graphic user interface
  • Automatic weighing compensation and zero tracking
  • Automatic measuring time adjustment

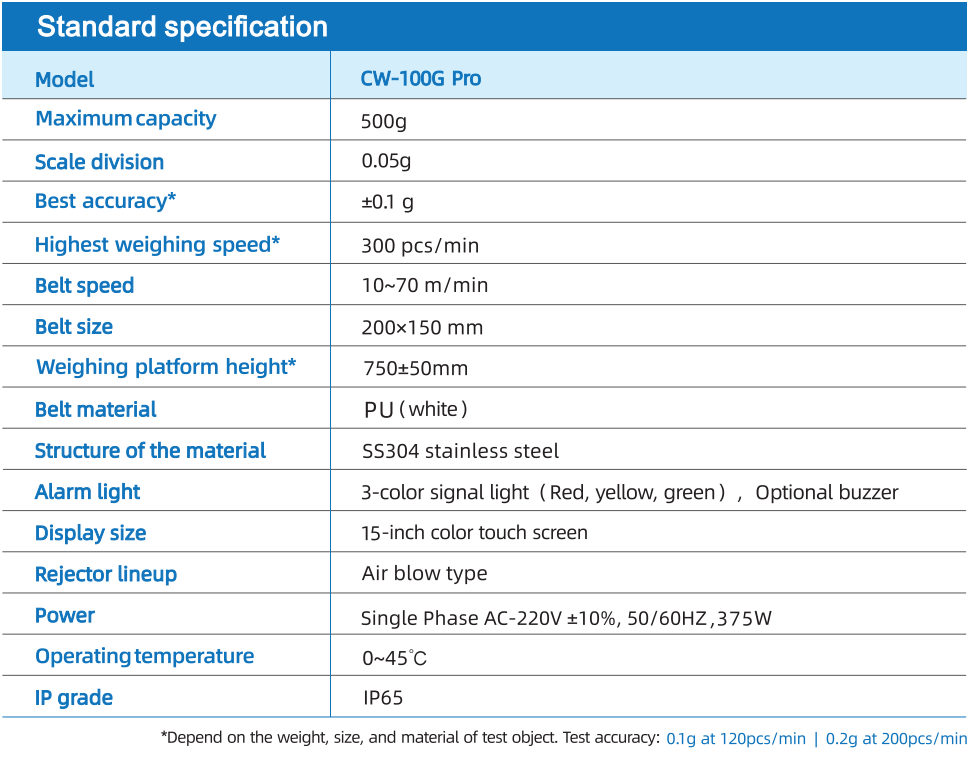

High Performance

  • The weighing range is 1~500g
  • The highest accuracy is ±0.1g
  • The highest speed is 300pcs/min

Developed Functionality

  • 1,000,000pcs weight value for production statistics
  • Data storage and data printout ready
  • Statistics programs for evaluation

Safety Design

  • Continuously variable belt speed control
