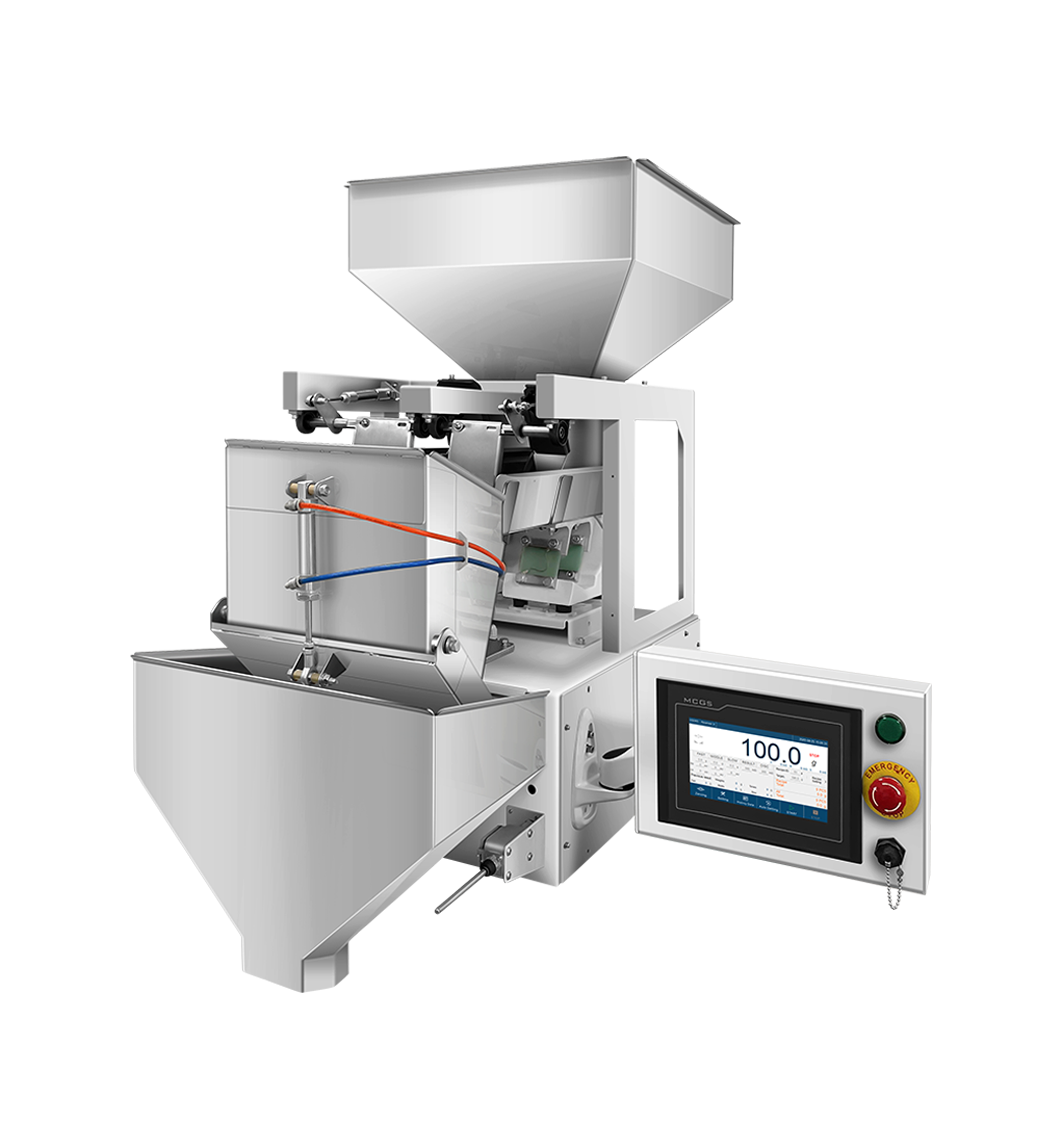

GM Linear Feeder Packing Machine

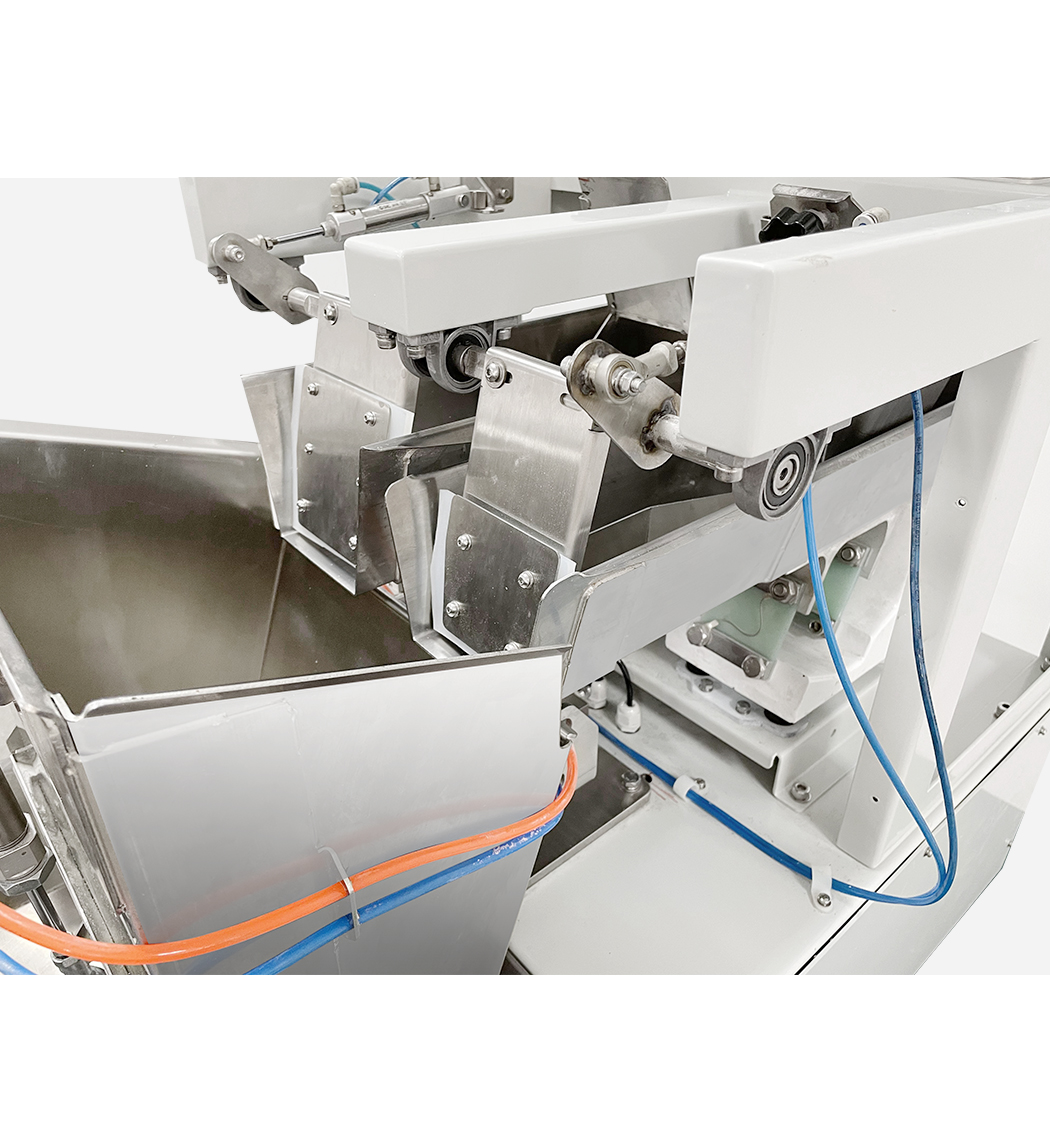

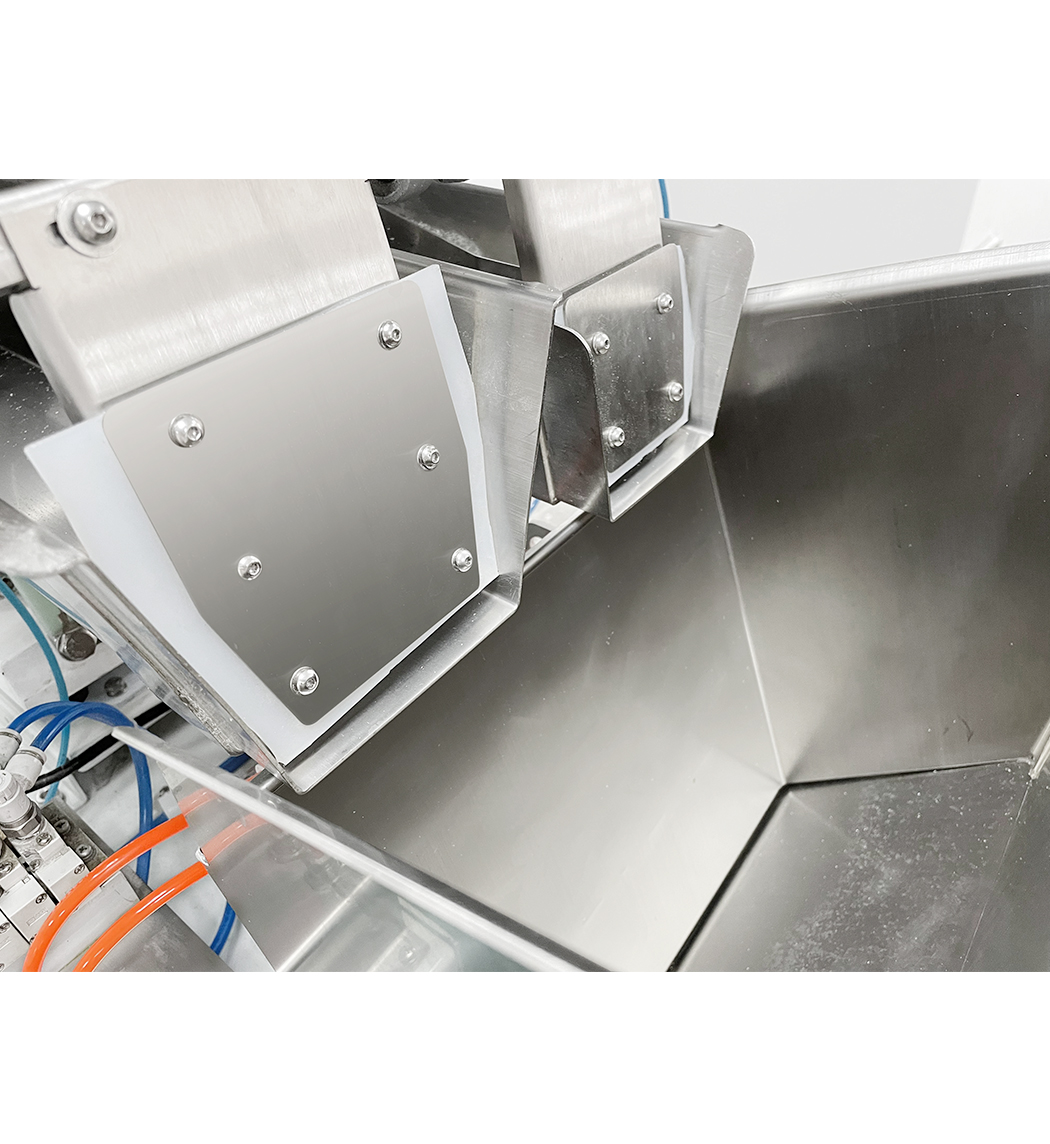

LF-5K is a linear feeder for granular materials and some powder materials. The vibratory feeding mechanism achieves multi-stage feeding. The pneumatic cylinder drives fast discharging. LF-5K linear feeder has a wide weighing range with high speed and high precision, which can be widely used in quantitative packaging machinery of grain, feed, chemical, rubber, and plastic industries.
ENQUIRE
IP 65
High Accuracy
Highly Integrated
Anti-Vibration
Product Function
- Automatic weighing type dosing function;
- Two-speed vibration feeding control;
- Automatic zeroing function;
- Process control, automatic parameters correction function;
- Accumulation and statistics function.
Product Features
- Intelligent: only need to set the target value, LF-5K can automatically adjust the optimal dosing speed with the guarantee of accuracy;
- Easy installation: standard external flange interface;

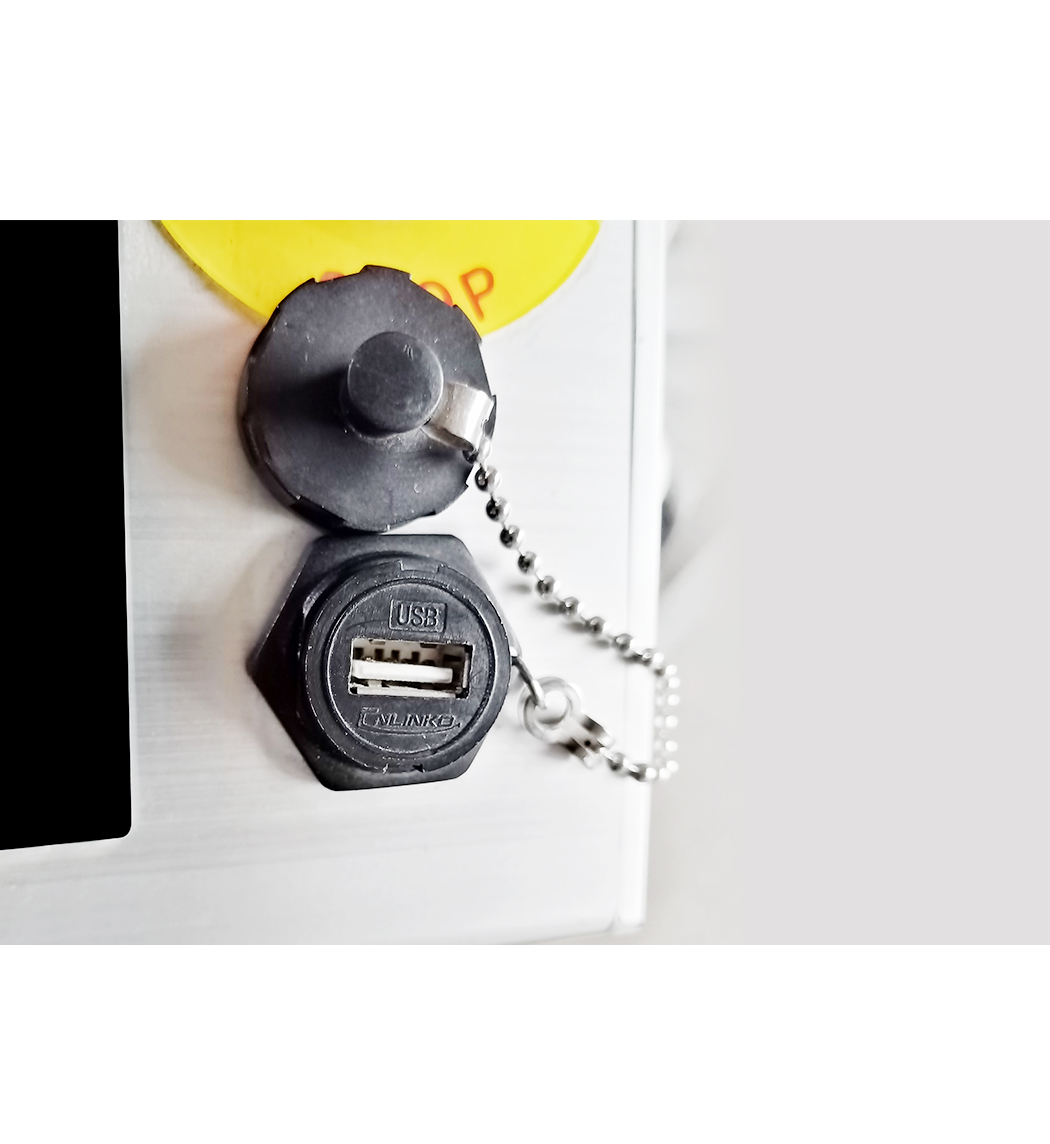

- Data export: USB interface, convenient for data export;

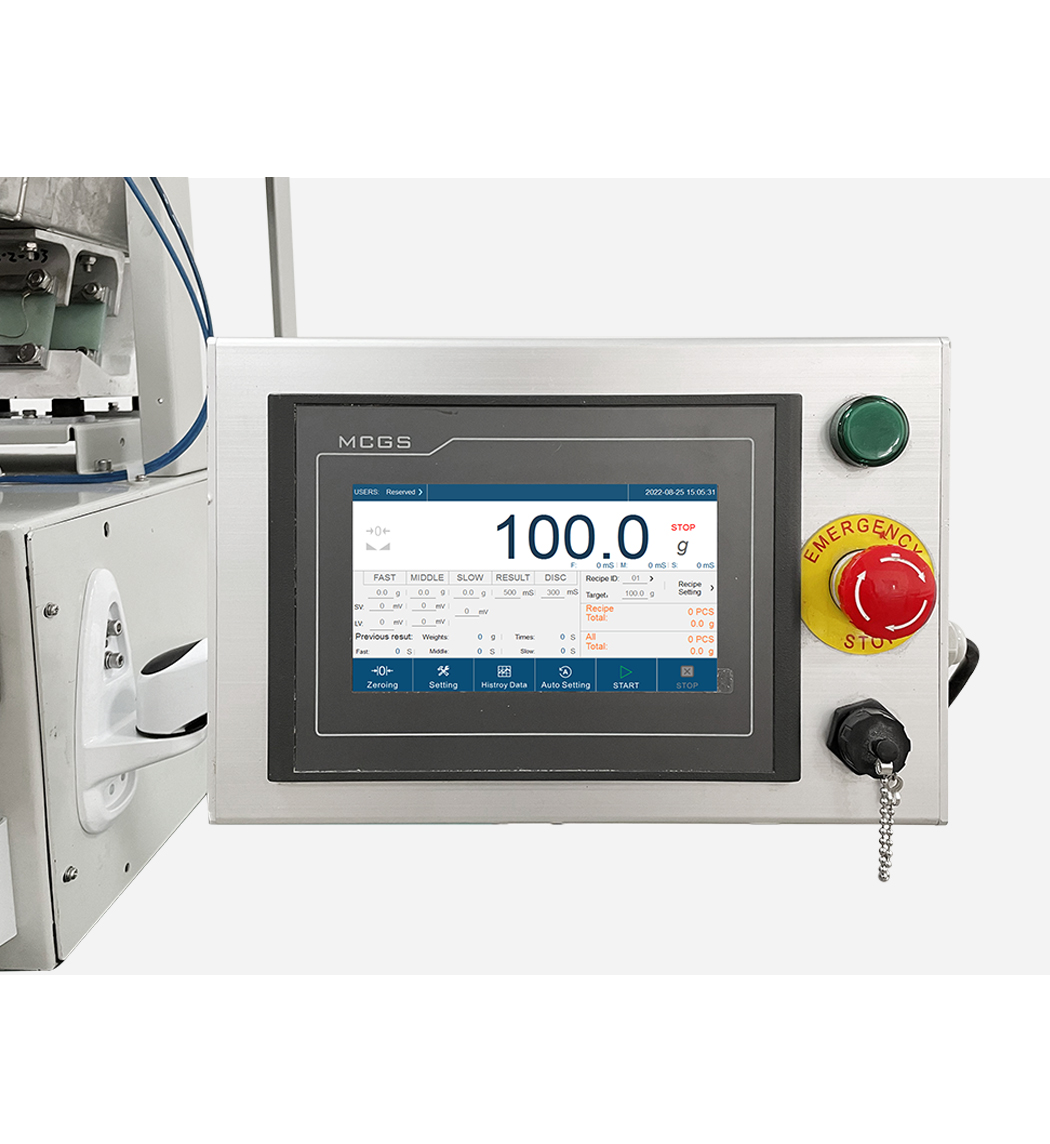

- Simple operation: 7-inch touch screen, Chinese/English display;
- High speed and high precision: double vibrators for feeding, fast and accurate.
 |
 |
