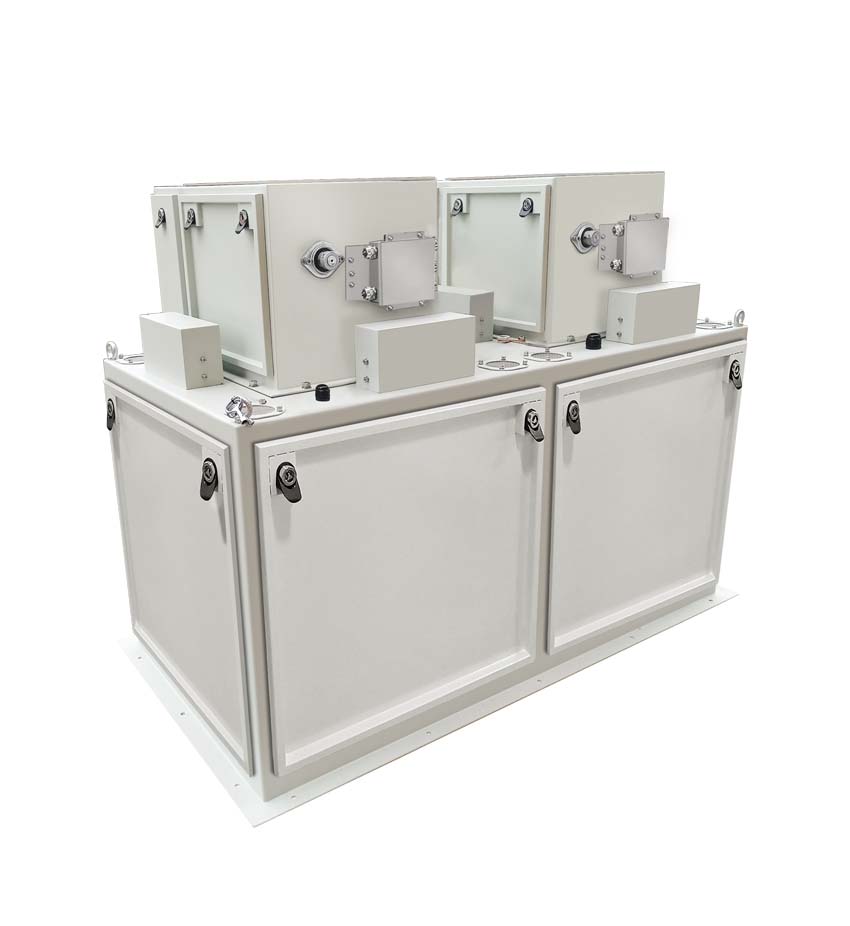

GM PaxGo Duplex Weigh Filler/Bagging Scale with 3-Loadcell Structure 25KG/50KG
GM PaxGo Duplex Weigh Filler/Bagging Scale AF-25K II and AF-50K II have a 3 - load cell structure and servo motor control. They are designed for fast and accurate granular material weighing and packing. The vibrator feeder can be added to the structure for material flow consistency and high accuracy.
ENQUIRE
High Accuracy
Highly Integrated
CE Approve
Easy Installation
Servo Motor Control
High Speed
Great Performance

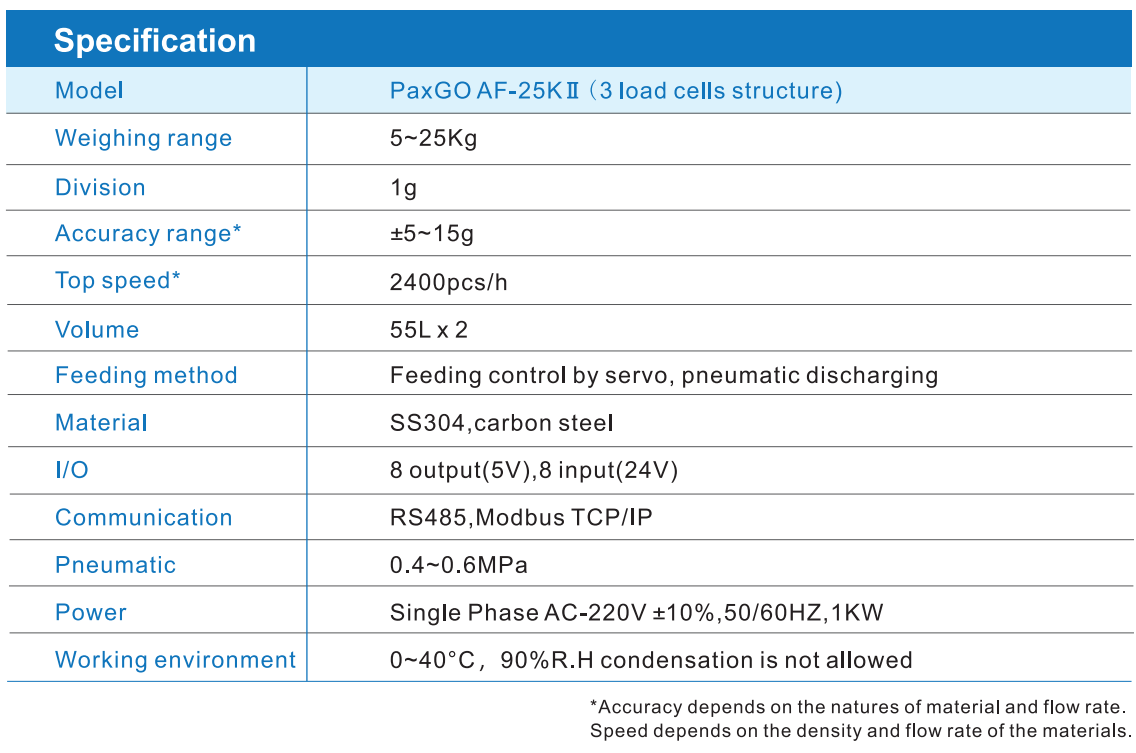

- AF-25K II 's weighing range: 5~25kg, best accuracy: ±15g, highest speed: 2400pcs/h

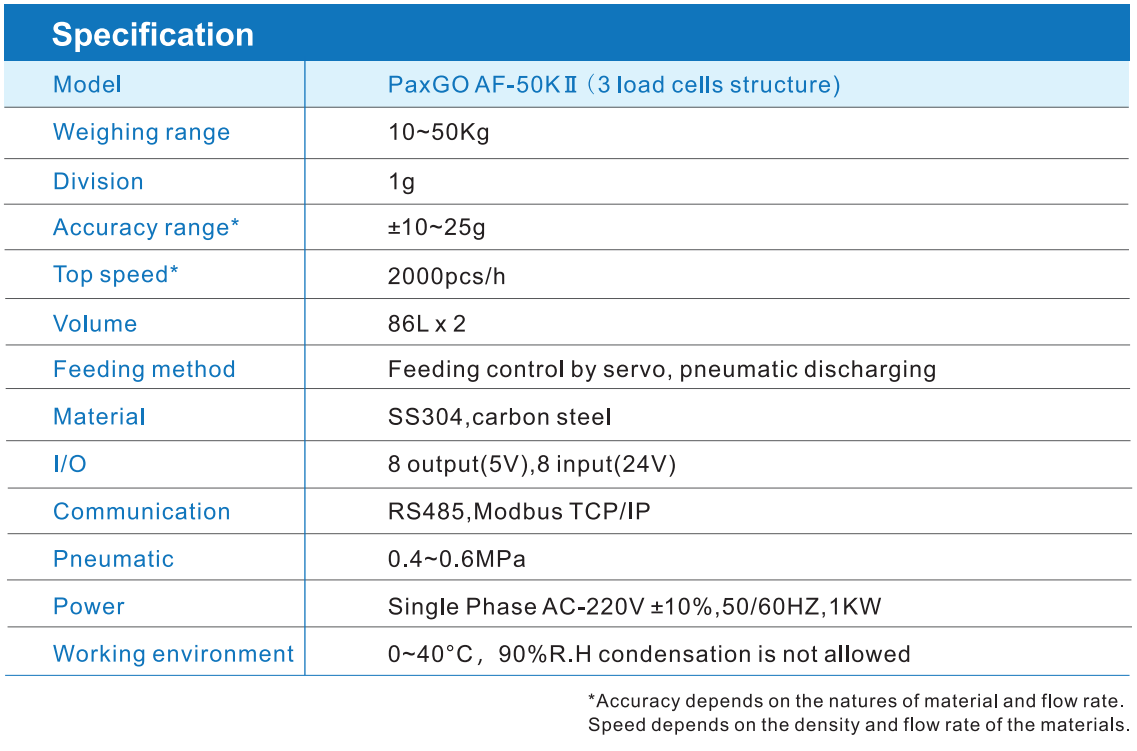

- AF-50K II 's weighing range: 10kg~50kg, best accuracy: ±25g, highest speed: 2000pcs/h
- Jumbo bag's weighing range: 500kg~50t, best accuracy: ±500g, speed: 1t/min
 |
 |
Industrial Design
- Module design with standard flange interface
- Stepping Motor for feeding control with intelligent auto adjustment
- Embedded USB for exporting data and system upgrading
- Superior packaging controller
- SS304 stainless steel for food contacting materials of the machine
User-friendly Design
- 10-inch touch screen
- Easy and fast installation
Well-organized data management
- Motor parameters: an interface can simultaneously display the motor status and parameters
- All definitions of each port can be intuitively selected
|
|
|
|
AF-25K II |
 |
AF-50K II
|
