GM PaxGo Weigh Filler/Bagging Scale 25kg/50kg/Jumbo Bag Packing
Intelligent Weigh Filler with High Precision and Efficiency
The automatic PaxGo weigh filler/bagging scale, and its self-optimizing controls can be precisely configured to meet your specific material flow, speed, and accuracy requirements.
A jumbo bag packing function is available.
ENQUIRE
High Accuracy
Highly Integrated
CE Approve
Easy Installation
Servo Motor Control
High Speed
Great Performance
- AF-25K's weighing range: 5~25kg, best accuracy: ±15g, highest speed: 1200pcs/h
- AF-50K's weighing range: 10kg~50kg, best accuracy: ±25g, highest speed: 1000pcs/h
- Jumbo bag's weighing range: 500kg~50t, best accuracy: ±500g, speed: 1t/min
 |
 |
Industrial Design
- Module design with standard flange interface
- Stepping Motor for feeding control with intelligent auto adjustment
- Embedded USB for exporting data and system upgrading
- Superior packaging controller
- SS304 stainless steel for food contacting materials of the machine
User-friendly Design
- 10-inch touch screen
- Easy and fast installation
Well-organized data management
- Motor parameters: an interface can simultaneously display the motor status and parameters
- All definitions of each port can be intuitively selected
 |
 |

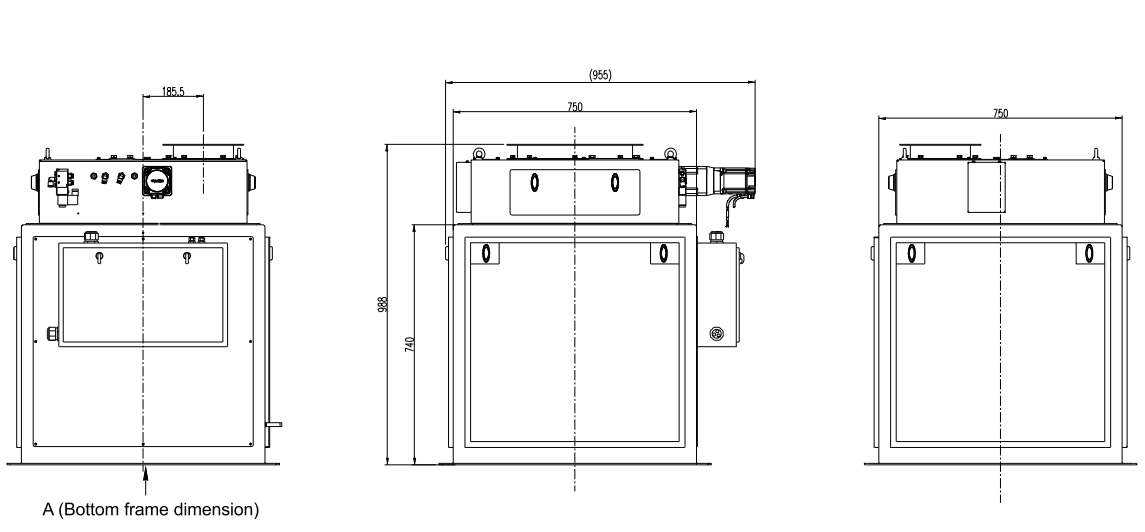

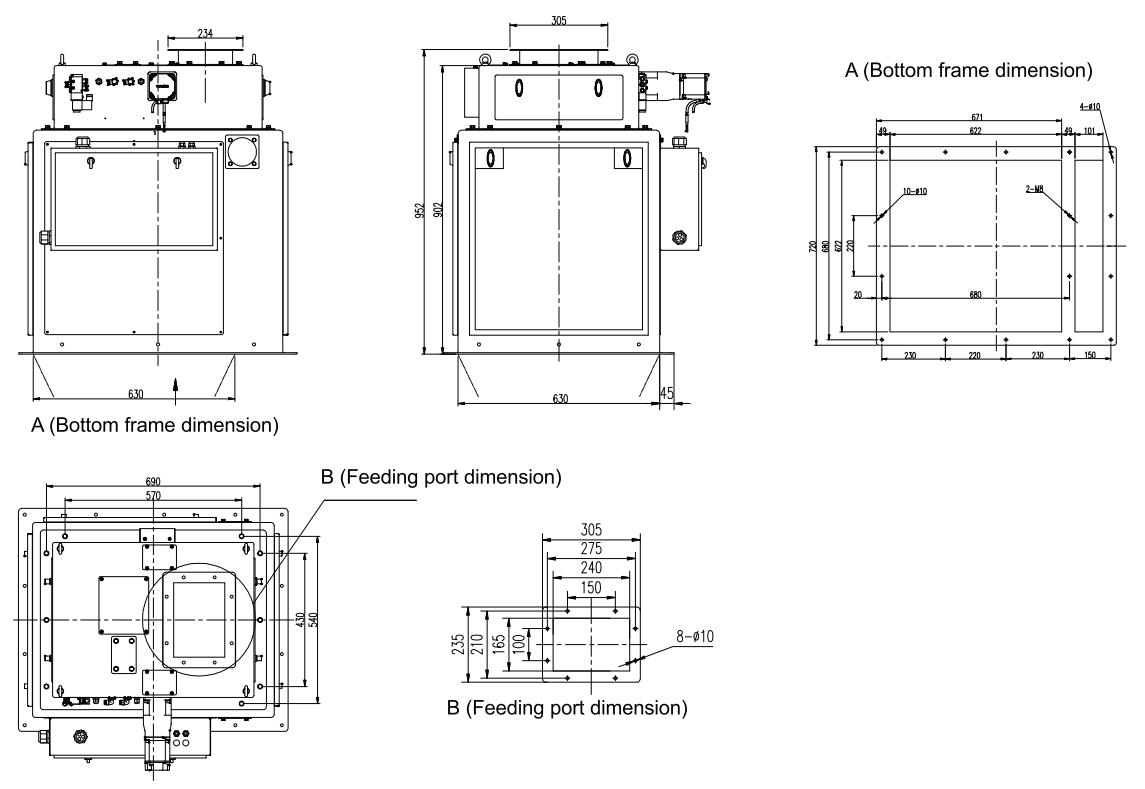

AF-25K |
 |
AF-50K
|
 |
