GM Weigh Filler AF-50K for Fertilizer Industry
The AF-50K weigh filler/packing scale is a fully upgraded version for the fertilizer industry. It is designed specifically for the characteristics of fertilizer materials, which are robust and anti-corrosive. With enhanced protection, optimized hardware, and upgraded algorithms, it delivers fast, accurate, and stable performance.
- SS316L full stainless-steel with blasted finish;
- Fully upgraded structure;
- Servo motor control and a vibrator for fine feeding;
- Weighing range: 10kg~50kg, accuracy range: 10-25g, highest speed: 1500pcs/h
ENQUIRE
IP 65
High Accuracy
Highly Integrated
CE Approve
Easy Installation
Servo Motor Control
High Speed
Anti corrosion
Anti Dust

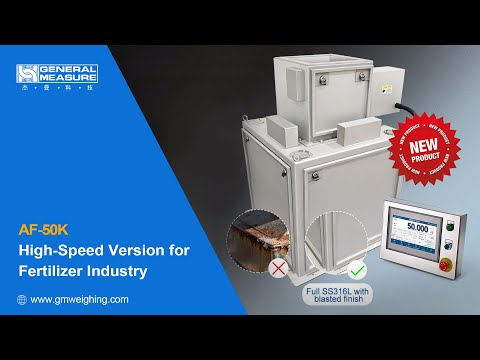

Product Videos

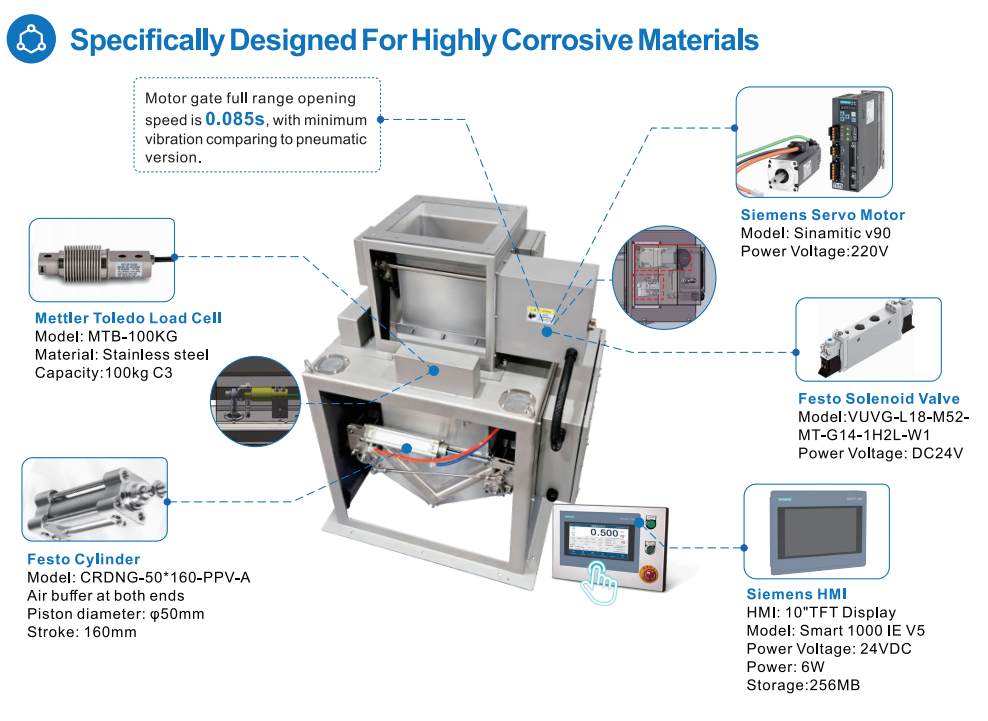

Material and Craftsmanship
- SS316L full stainless-steel structure with blasted finish for corrosion resistance.
Feeding Hopper Upgrade
- Specially designed feeding hopper structure stabilizes feeding pressure and improves feeding speed.
Load Cell Upgrade
- Adjusted the floating direction of the load cell connection point to ensure high-speed stability.
Protection Upgrade
- Dustproof film protection for the load cell, providing improved protection without compromising accuracy.
- Oil seal treatment enhances gearbox protection level.
- Protective covers for the load cell, motor, and solenoid valve, plus a special cable entry design to prevent object intrusion.
Algorithm Upgrade
- Sampling rate 960 SPS.
- Upgraded adaptive algorithm ensures fast, accurate, and stable weighing and packing.
Wide Material Compatibility
- Feeding gate minimum adjustment is 0.015mm. (maximum 200mm, adjustment range 1-13500)
- Capable of handling various fertilizers in different forms.
 |
 |
 |
