Explosion-Proof Weighing Transmitter GMT-H2ex

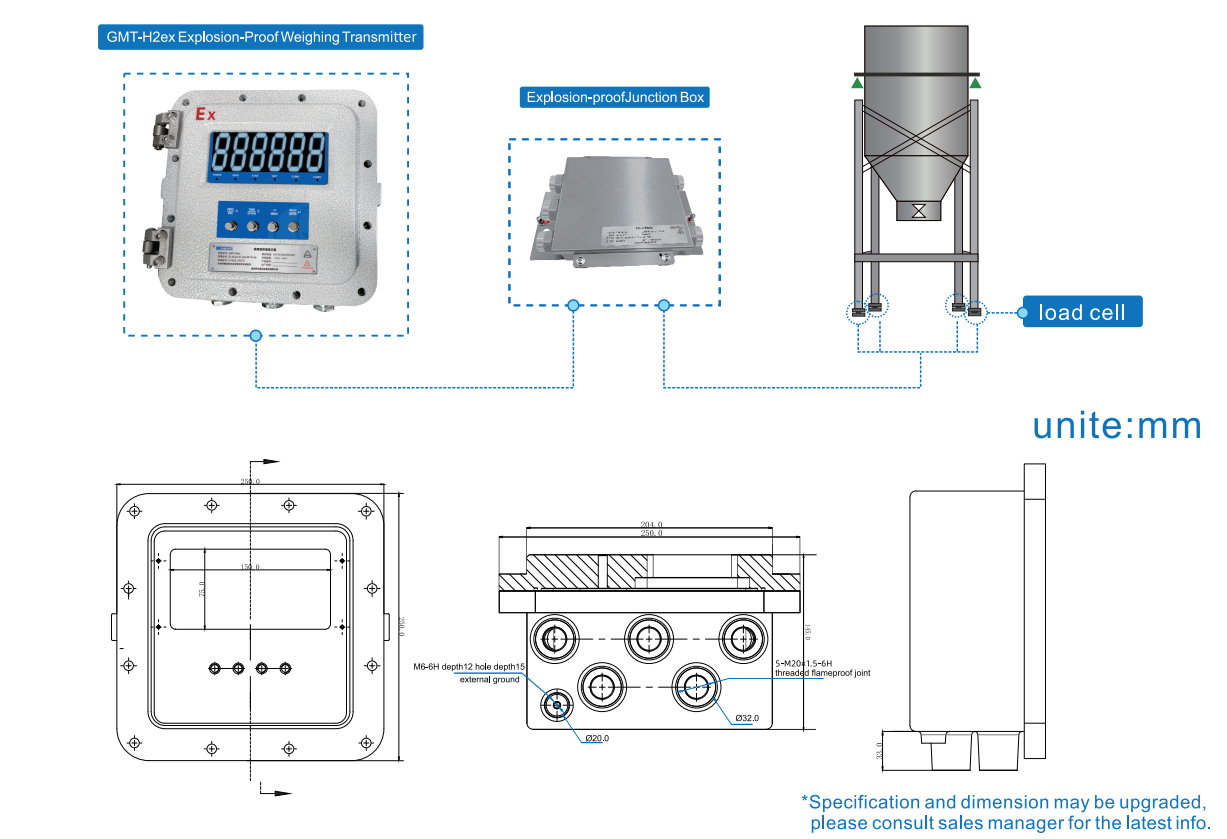

GMT-H2ex is a harsh mount explosion-proof weighing transmitter. With a high-strength cast aluminum case and built-in safety barrier, it provides double protection at enclosure and circuit levels, a 2-inch 6-digit LED display, and 4 metal buttons, are designed for precise weighing and transmitting in hazardous environments.
ENQUIRE
High Accuracy
Anti-Vibration
CE Approve
Anti-Explosion
Hardware Highlights
- Standard: ① 2 RS485 & 1 RS232 ports; ② 4 Input 6 Output I/O ports;
- Option1: 1 analog output;
- Option2: Modbus TCP or ProfiNet, or Ethernet IP, or EtherCAT or CCLink IE;
(Option1,2 can be selected at the same time)
 |
Advantages & Features
- Explosion-proof certification, exlosion-proof mark: Ex db [ia llC Ga] lB T6 Gb;
- A high-strength cast aluminum case provides strong protection;
- Build-in intrinsic safety barrier simplifies connection to the intrinsic safety load cell.
- 110V-220VACor 24V DC powerinput, meeting diverse industrial needs.
Certification
- Explosion-proof certification: Ex db [ia IIC Ga] IIB T6 Gb.
 |
 |
 |
