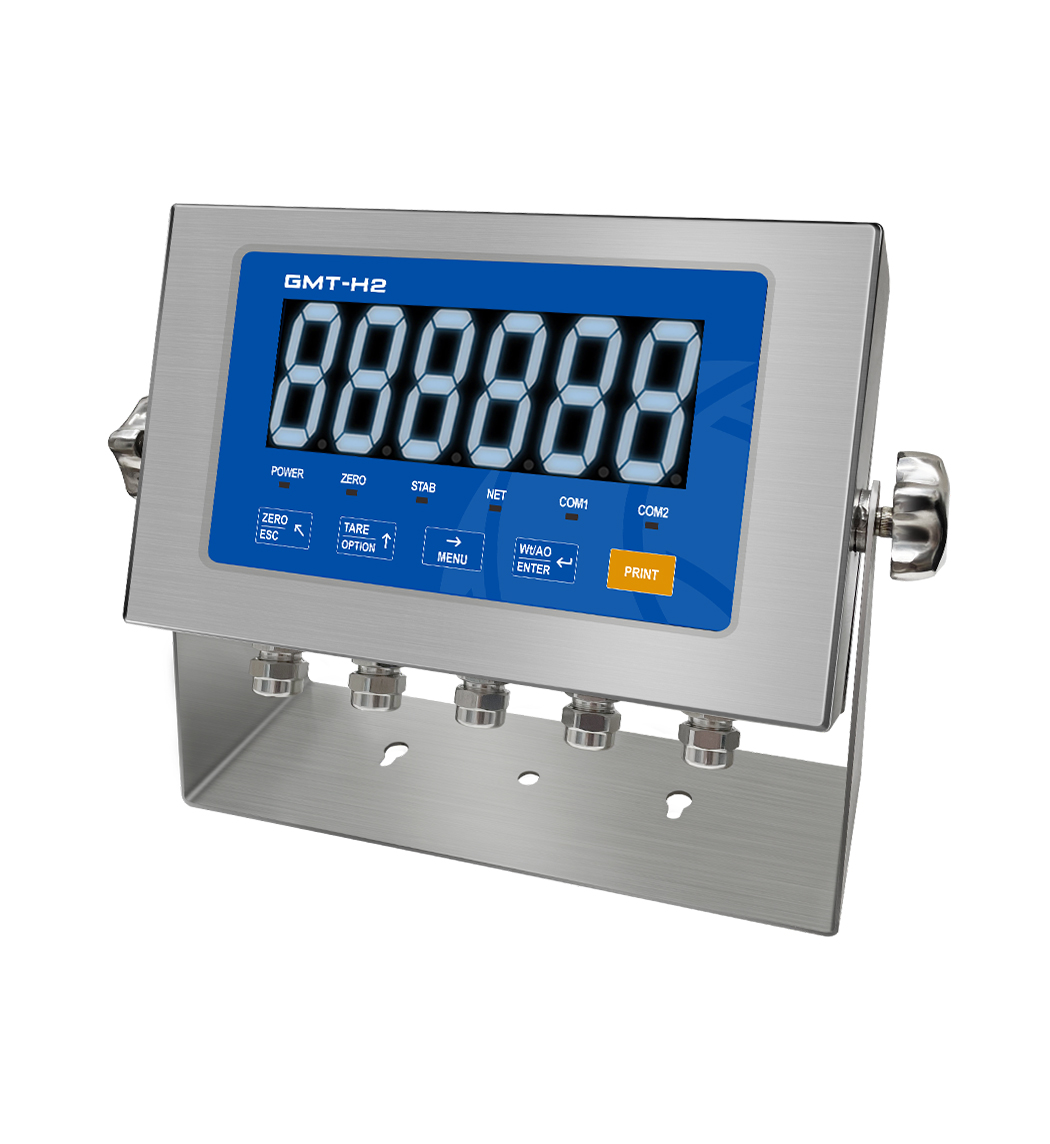

Weighing Transmitter GMT-H2
GMT-H2, OIML R76 approval, is a wall/desk-mount weighing transmitter with stainless steel shell which reaches IP65 protection. 2-inch LED display with 6 digits and indicator lights. It can be widely used in the industrial automation fields, such as silo weighing, platform weighing, weight checking, loss-in-weight, liquid filling, batching, and so on.
GMT-H2ex, the explosion-proof version with high-strength cast aluminum, is available.
Certification: Ex db [ia IIC Ga] IIB T6 Gb.
IP 65
Highly Integrated
Anti-Vibration
CE Approve
Advanced Digital Filtering
OIML
Product Videos
Hardware Highlights
- Standard: ① 2 RS485 & 1 RS232 ports; ② 4 Input 6 Output I/O ports;
- Option1: 1 analog output;
- Option2: Modbus TCP or ProfiNet, or Ethernet IP, or EtherCAT or CCLink IE;
(Option1,2 can be selected at the same time)
 |
Software Highlights
- Calibration with or without weights;
- Analog functions;
- Print function;
- I/O preset point function.
Certification
- OIML R76
- Explosion-proof certification: Ex db [ia IIC Ga] IIB T6 Gb.
 |
 |
