Weighing Transmitter G-2301P
The G-2301P is a panel-mount transmitter that has both weighing and force-measurement modes. It features a dual-row digital display that provides a clear and intuitive indication of instrument status. It is widely applied in the chemical industry, fertilizer and feeds industry, electronics production and other industrial fields.
ENQUIRE
IP 65
Man Machine Design
High Accuracy
Highly Integrated
Anti-Vibration
EMC Testing Passed
CE Approve
Compact Design
Advanced Digital Filtering
PRODUCT ENQUIRE

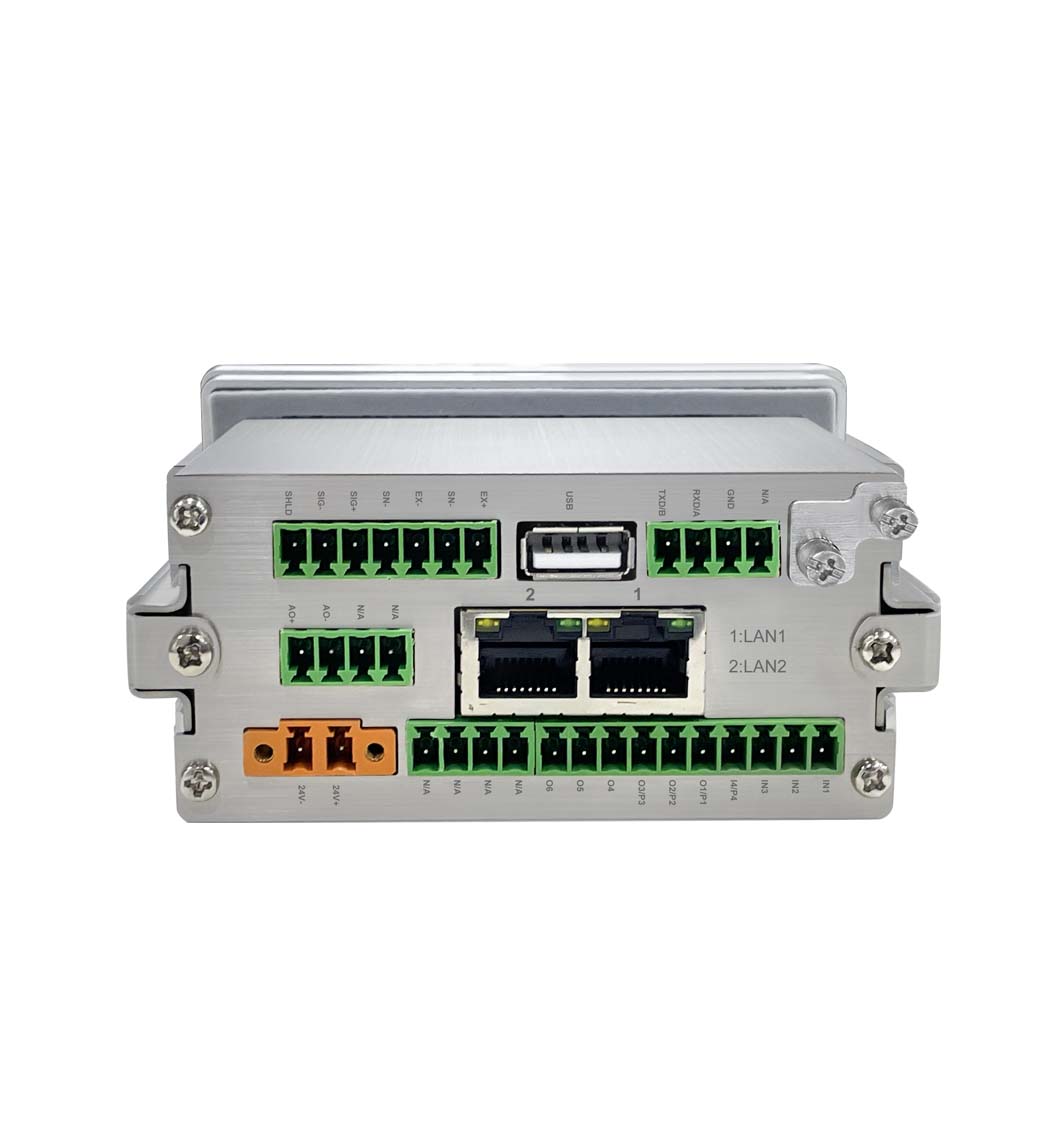

Hardware Highlight
Standard:
- Loadcell; 6-wire interface;
- Serial Port: 1 RS485 or 1 RS232;
- I/O: 4 inputs 6 outputs (transistor output) or 4 inputs 5 outputs (relay output);
- USB: 1 interface
Options:
- Analog: 16-bit analog output (current or voltage);
- Network: single or dual network port for Modbus TCP/IP, or bus interface for Profinet.
Features & Functions
- Weighing or force-measurement modes selectable (must be specified when ordering);
- Shortcut key for quick printing
- Tare functions, supporting preset tare and auto tare;
- Weight correction function with automatic coefficient calculation;
- Parameter backup and migration - no calibration needed when replacking a device;
- Key lock function to prevent misoperation;
- Operation record for easier troubleshooting;
- Weasy-Config PC software for remote configuration and monitoring.
 |
 |
