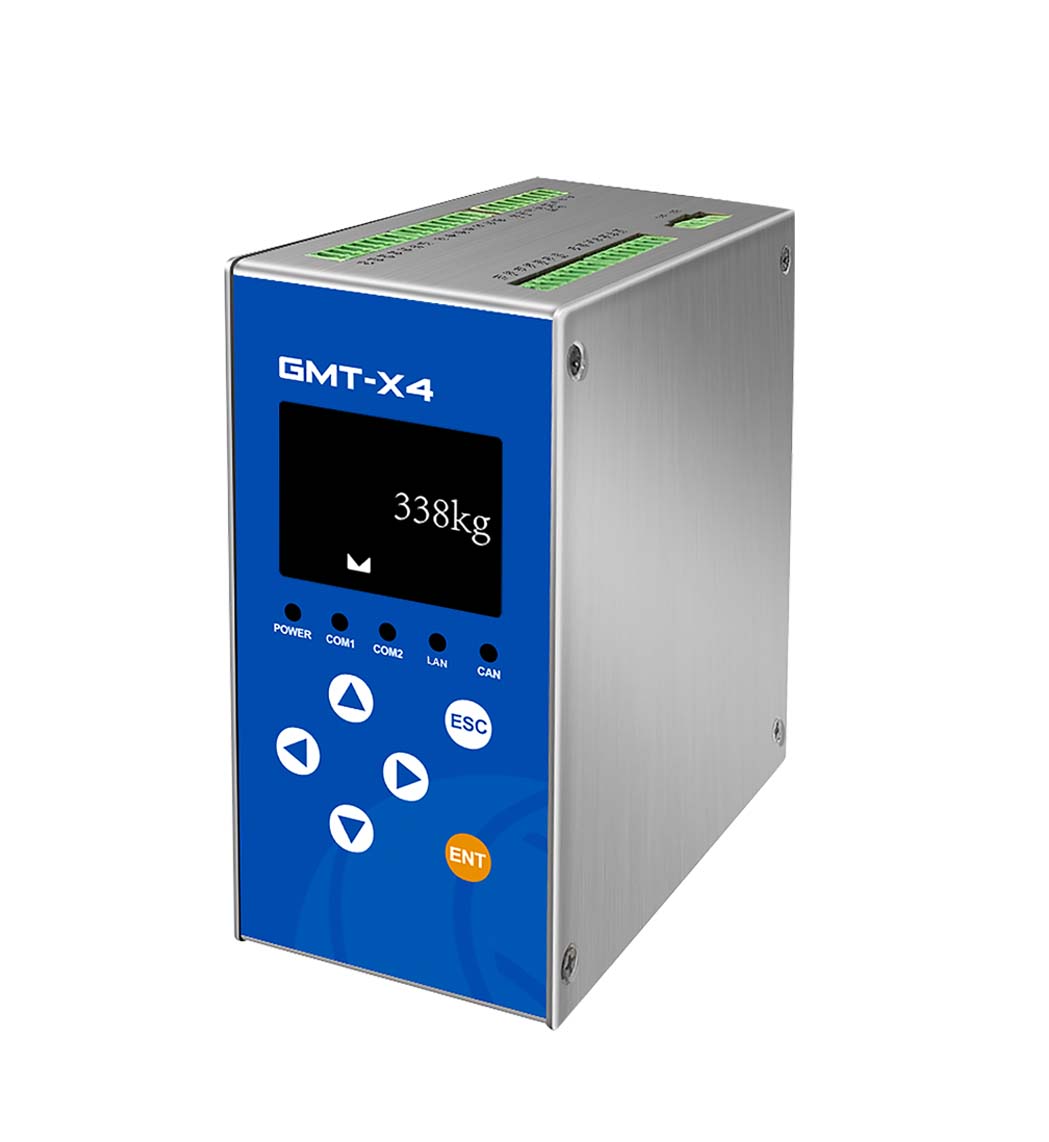

Weighing Transmitter GMT-X4 Four-Channel

GMT-X4 is a DIN rail-mounted weighing transmitter with four-channel. With the options of 4 individual channels weight display or 4 channels in a total weight display, an intelligent junction box function built-in, it can easily monitor the defaulted load cell. GMT-X4 will automatically identify and give an alarm by displaying the alarm message on the screen. It has the characteristics of compact design, stable performance, and easy operation, which can be used for various weighing applications, such as weight checking, loss-in-weight, liquid filling, batching, vessel and silo weighing, etc.

ENQUIRE

IP 65
Highly Integrated

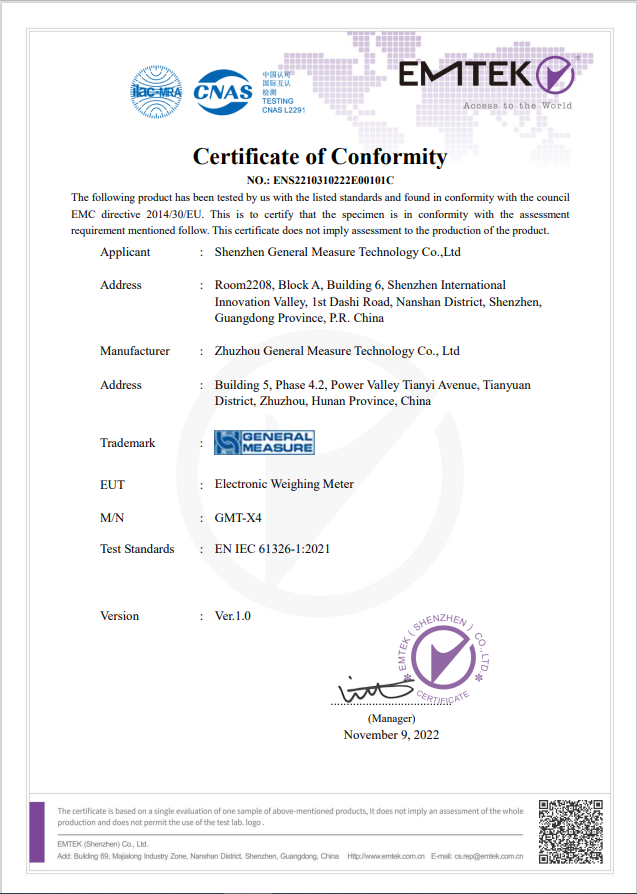

CE Approve
Advanced Digital Filtering
Easy Installation

PRODUCT ENQUIRE

Product Videos

General Measure 4-Channel AD Weighing Indicator GMT-X4

Load Cell Channels Setup and Theoretical Calibration

How to Adjust Corner Difference of GMT-X4 Combination Mode

How to Improve Weighing Accuracy with the GMT-X4 | Weight Correction Coefficient Tutorial

RS485 Serial Communication Demonstration

Communicate Between GMT-X4 and Modbus Poll via Modbus TCP/IP

Communicate GMT-X4 with PLC via the PROFINET Protocol

Key Features Specification Dimension Certificates Documentary

Hardware Highlights

Stainless steel housing with compact design(62X134X128mm)；
Different configuration choices, a variety of combinations；
Standard: ① 4-channel of 6-wire load cell interfaces; ② RS485&RS232; ③ 4 Input 8 Output transistor I/O;
Option1: Modbus TCP /IP or EtherNet/IP or ProfiNet or EtherCat or CCLink;
Option2: 4 analog output;
Option3: 1CAN interface;

(Option1,2,3 can be selected at the same time)

Software Highlights

With the option of an intelligent junction box function built-in, can easily monitor the defaulted load cell.
Zero point reset function: support resetting the zero point as before power failure when re-powering;
Theoretical value calibration, stable within 3s of the calibration process automatically;
Remote monitoring and configuration by PC with Modbus TCP connecting up to 6 devices at once;
Input anti-vibration function, which time can be set.
