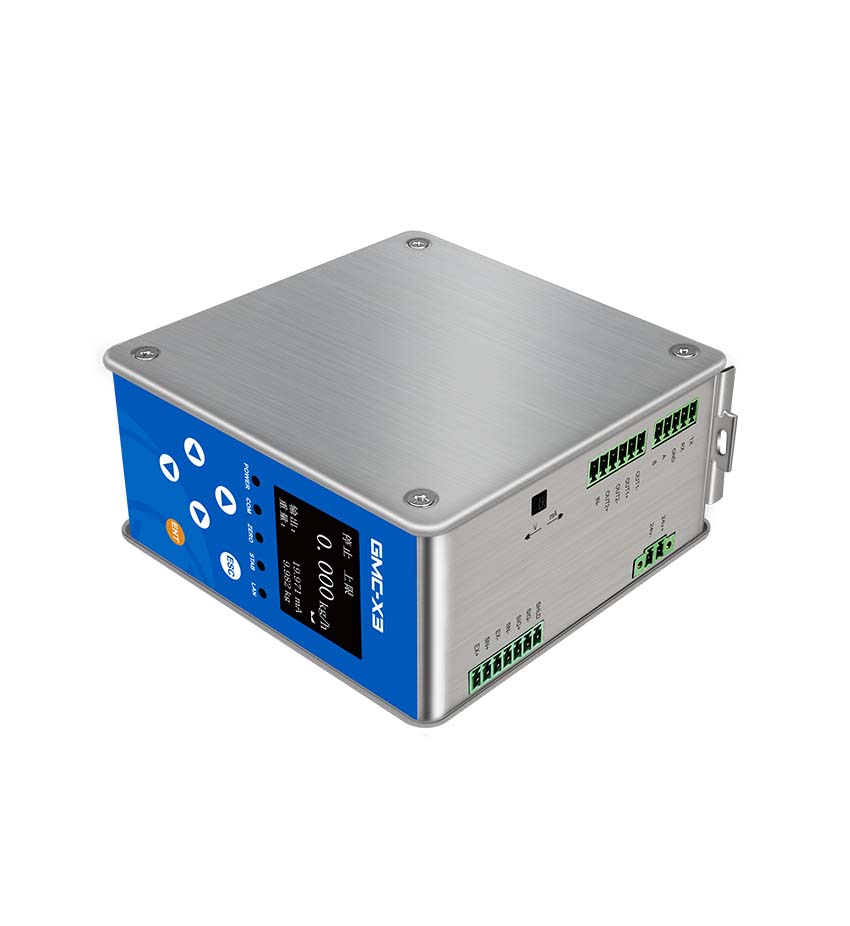

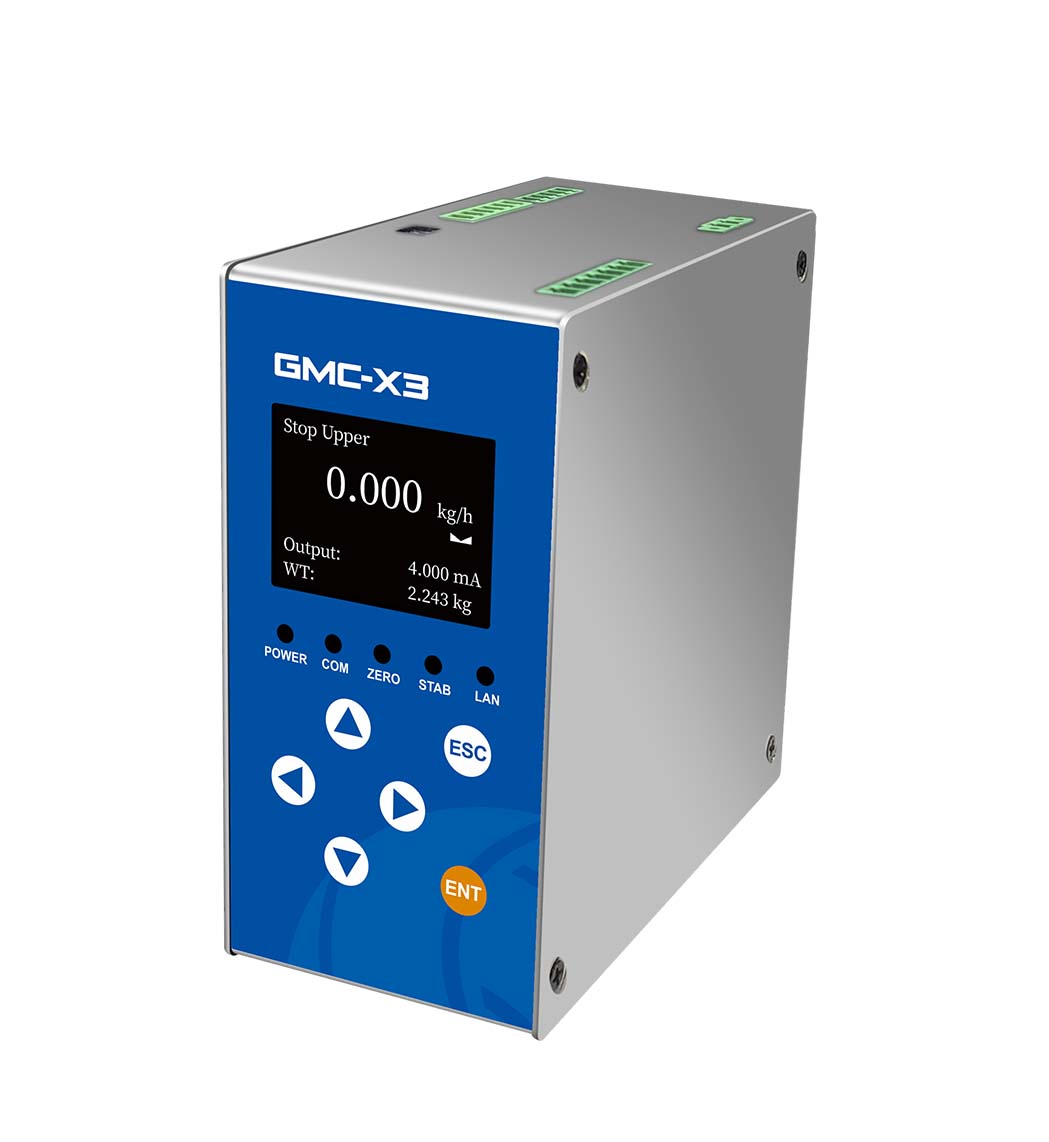

LOSS-IN-WEIGHT CONTROLLER GMC-X3
GMC-X3 is a loss-in-weight controller for high-precision continuous dosing applications. It can be applied to the liquid/powder/granule/flake dry bulk materials, providing the function of accurate and stable feeding, reducing material waste, and improving the consistency of the complex material. GMC-X3 is mainly used in the chemical industry, plastics, rare earth smelting, and other industries.
ENQUIRE
High Accuracy
Highly Integrated
EMC Testing Passed
CE Approve
Compact Design
PRODUCT ENQUIRE
Weasy Functions
- Standard: controller LCD screen, well-designed interface;
- Optional: WEINVIEW 7-inch touch screen, well-designed interface, easy operation;
- Modular design, clear interface, and easy operation;
- Support 4 points flow calibration, single point flow calibration, and more accuracy;
- Historical data check and Excel export;

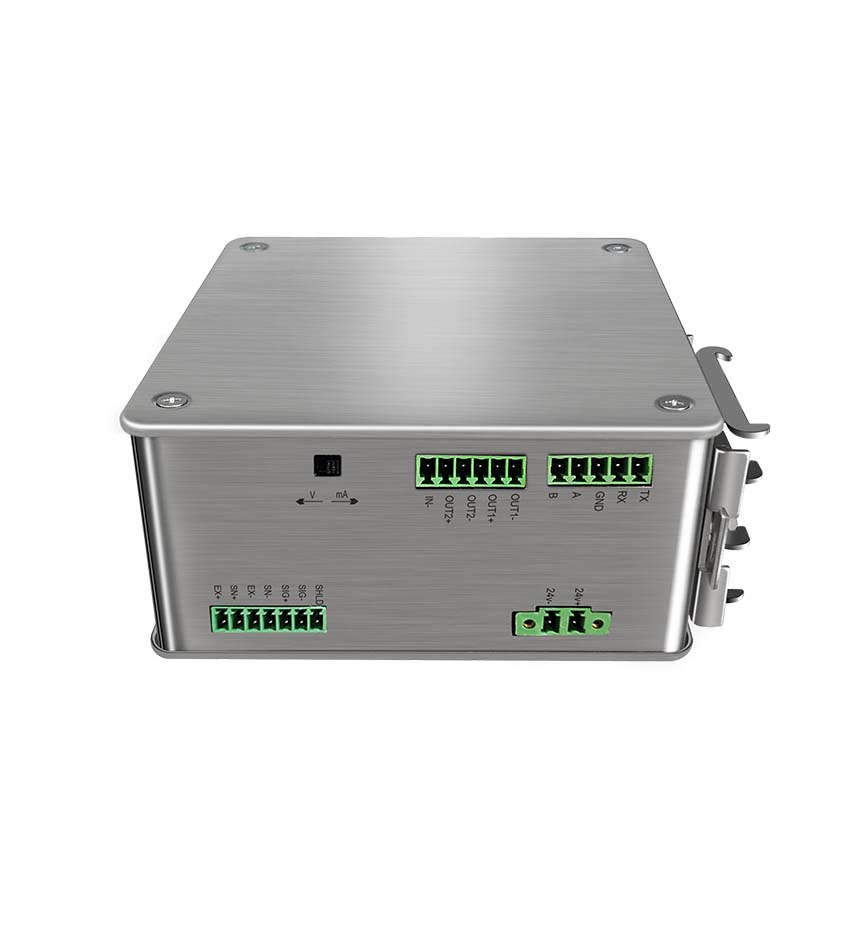

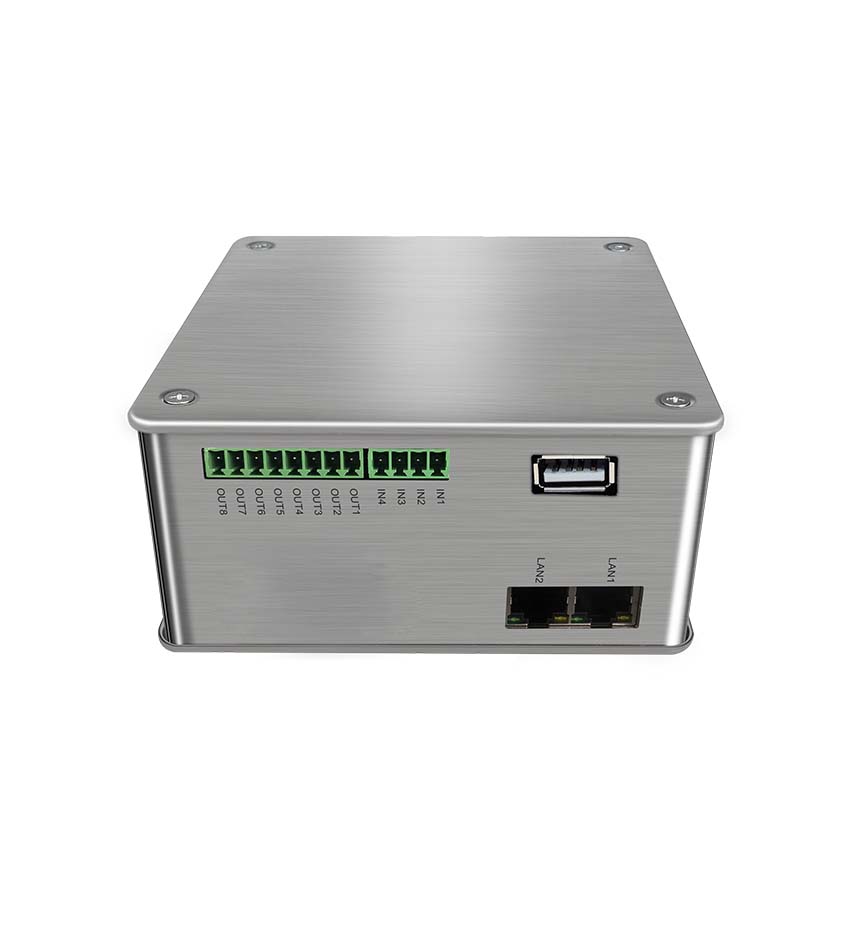

Hardware Features
- DIN rail mounted, compact design, easy installation;
- EMC anti-interference adapts to the harsh industrial environment;
- Standard: 1 analog output, 1 RS485 and 1 RS232, 4 inputs and 4 outputs + 4 self-defined transistor inputs or outputs, 1 standard network port for Modbus TCP;
- Optional: 2 network ports for ModbusTCP or Profinet, 1 analog input + 1 analog output.
Software Features
- New generation algorithm of flow control, automatic flow adjusted for stable performance;
- Support analog calibration, automatic/manual calibration of flow rate;
- Automatic locking and unlocking function for flow interference;
- Support two devices to access the instrument parameters function simultaneously(Modbus TCP);
- Support multiple working modes: 1. Flow calibration mode, 2. Dosing mode (2.1. flow rate presetting and flow rate giving mode, 2.2. PID control mode, segment control mode.)
- Threshold anti-interference function, which makes the working process of the instrument more stable;
- Multi-material function, supports up to 10 material parameters, convenient to switch between different material parameters.
 |
 |
 |
