Weighing Controller GM9907 Series

General-purpose Weighing Controller with Touch Screen

GM9907 is a general purpose weighing controller series that is designed to control automatic packing machines. English, Spanish, and Chinese versions are available. GM9907 - LD with dual hoppers is for the double scale packing machine. The brand new GM9907 - L2 has 5 models to complete different functionality(with/without hopper, bulk scale, valve port, PLC). This series can be widely used in the industries of feed, grain, seed, and chemical and so on.

There are 4 different software:

1. Bagging scale

2. Bulk weighing

3. Liquid filling

4. Batching

ENQUIRE
  • IP 65

    IP 65

  • Man Machine Design

    Man Machine Design

  • High Accuracy

    High Accuracy

  • Highly Integrated

    Highly Integrated

  • Anti-Vibration

    Anti-Vibration

  • EMC Testing Passed

    EMC Testing Passed

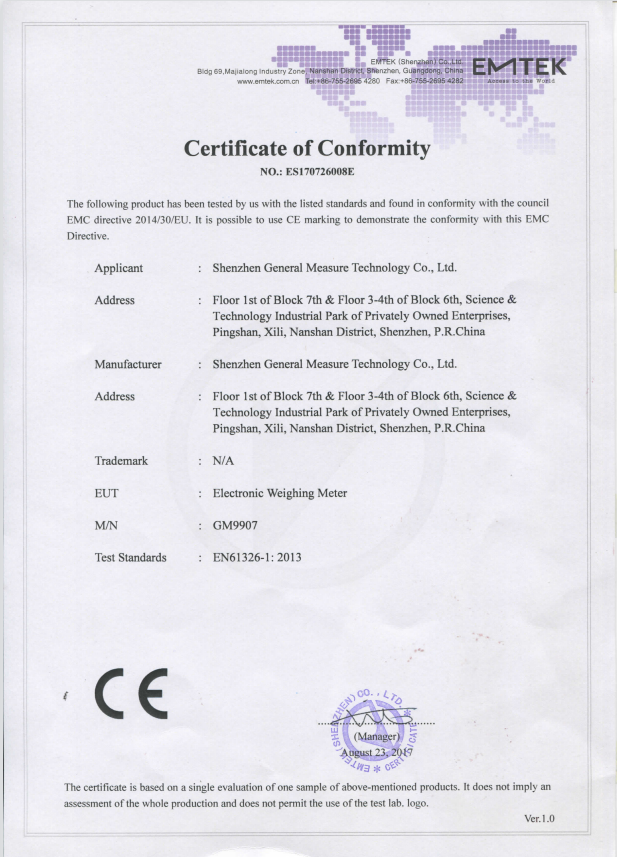

  • CE Approve

    CE Approve

  • Compact Design

    Compact Design

PRODUCT ENQUIRE


Various Software Options

  • Bagging scale
  • Bulk scale
  • Liquid filling
  • Batching

User Friendly

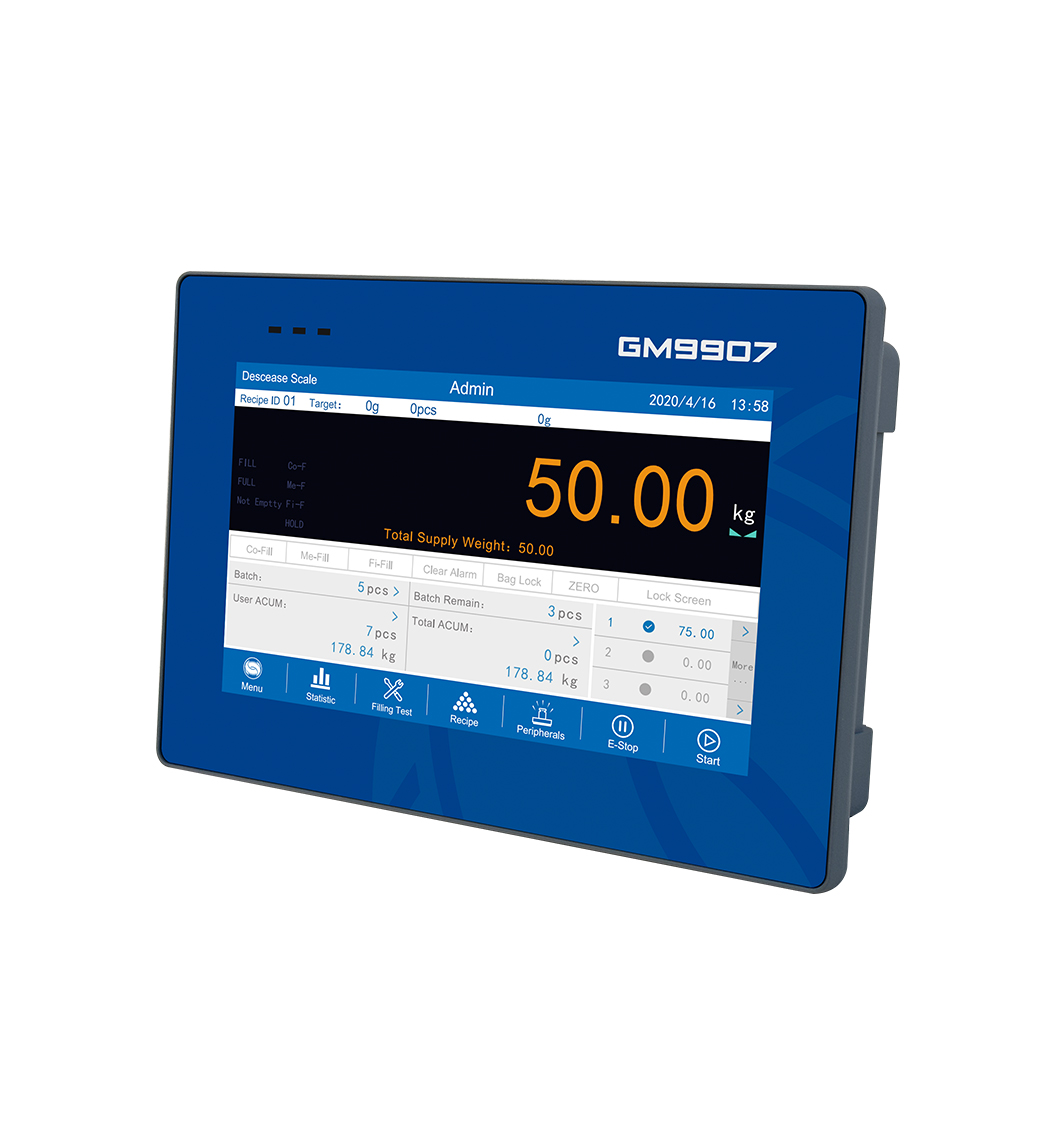

  • 7-inch full color touchscreen
  • Date/time-set function

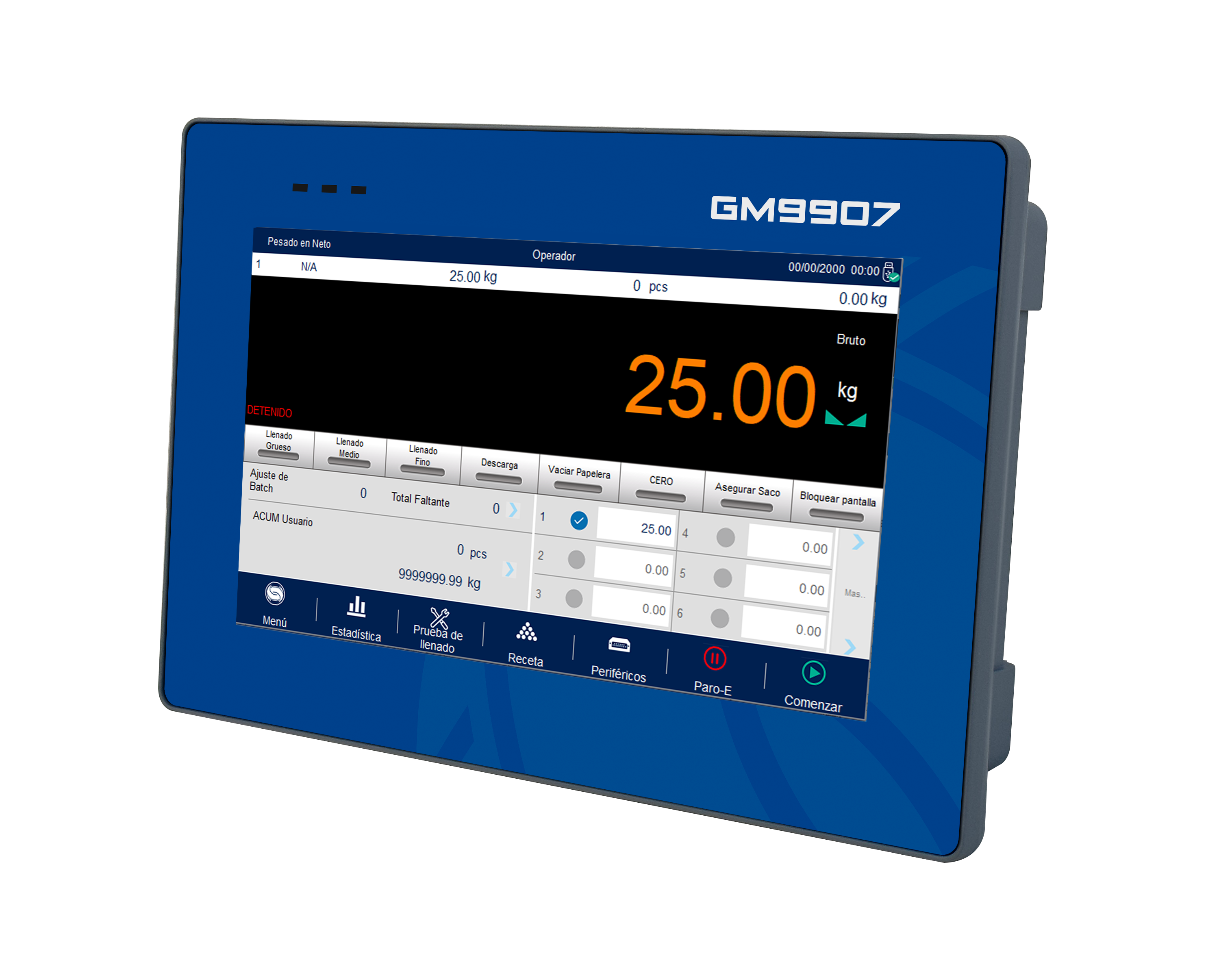

  • English, Spanish, and Chinese versions are available.

Advanced & Intelligent Model

  • Self-charging adaption
  • Support boot screen alteration and upgrade with USB
  • Two communication ports and Ethernet ports as standard connecting with computer or printer

Flexible Operation with high speed

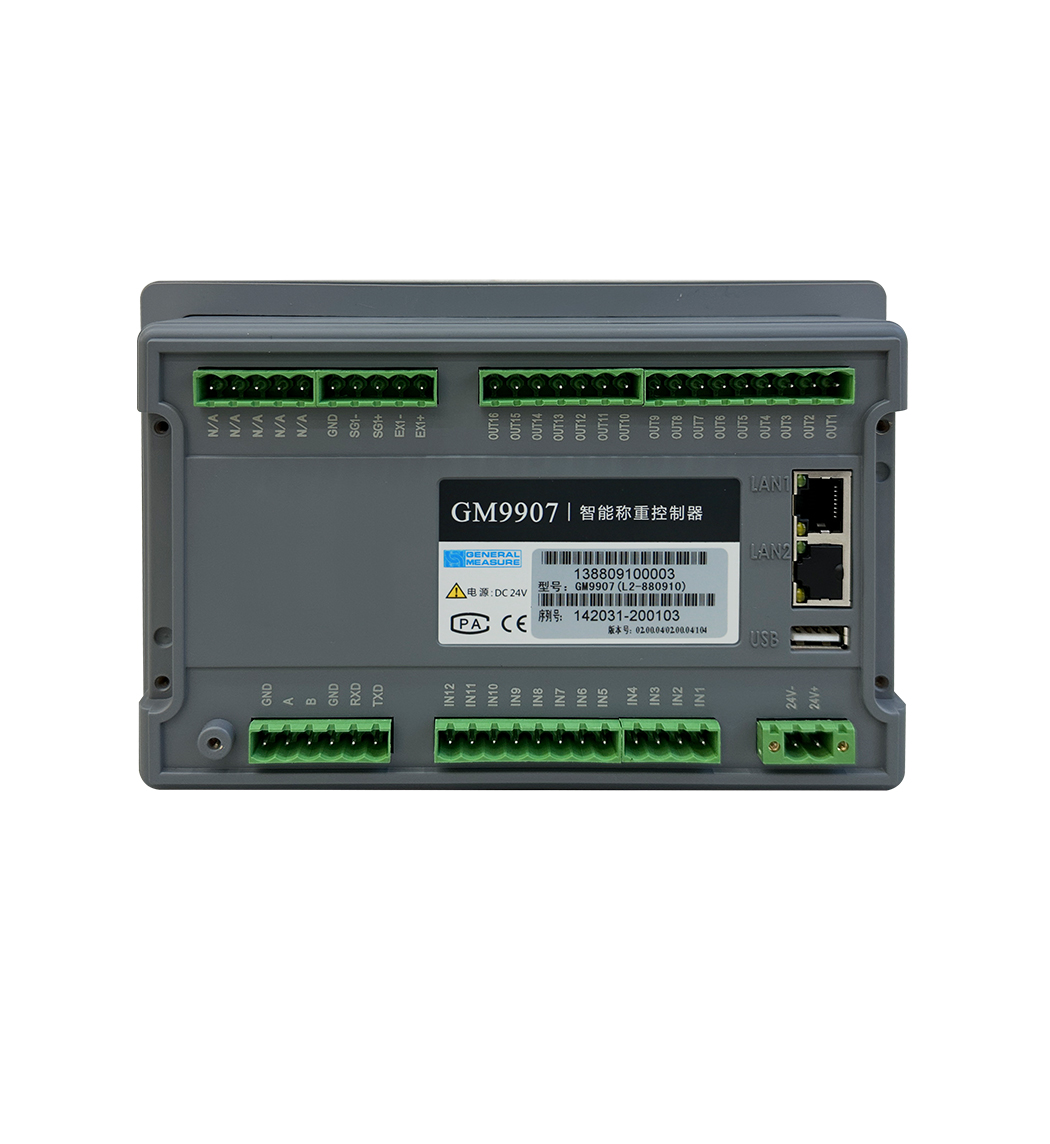

  • 28 programmable input and output control ports (12 in and 16 out), which are customised
  • 40 recipes can be programmed and stored within controller for future choice and use.
  • Manual digital calibration and with reweighing function
  • Selectable A/D Converter 120/240/480/960 times/sec

High Accuracy

  • Display accuracy up to 1/100,000
