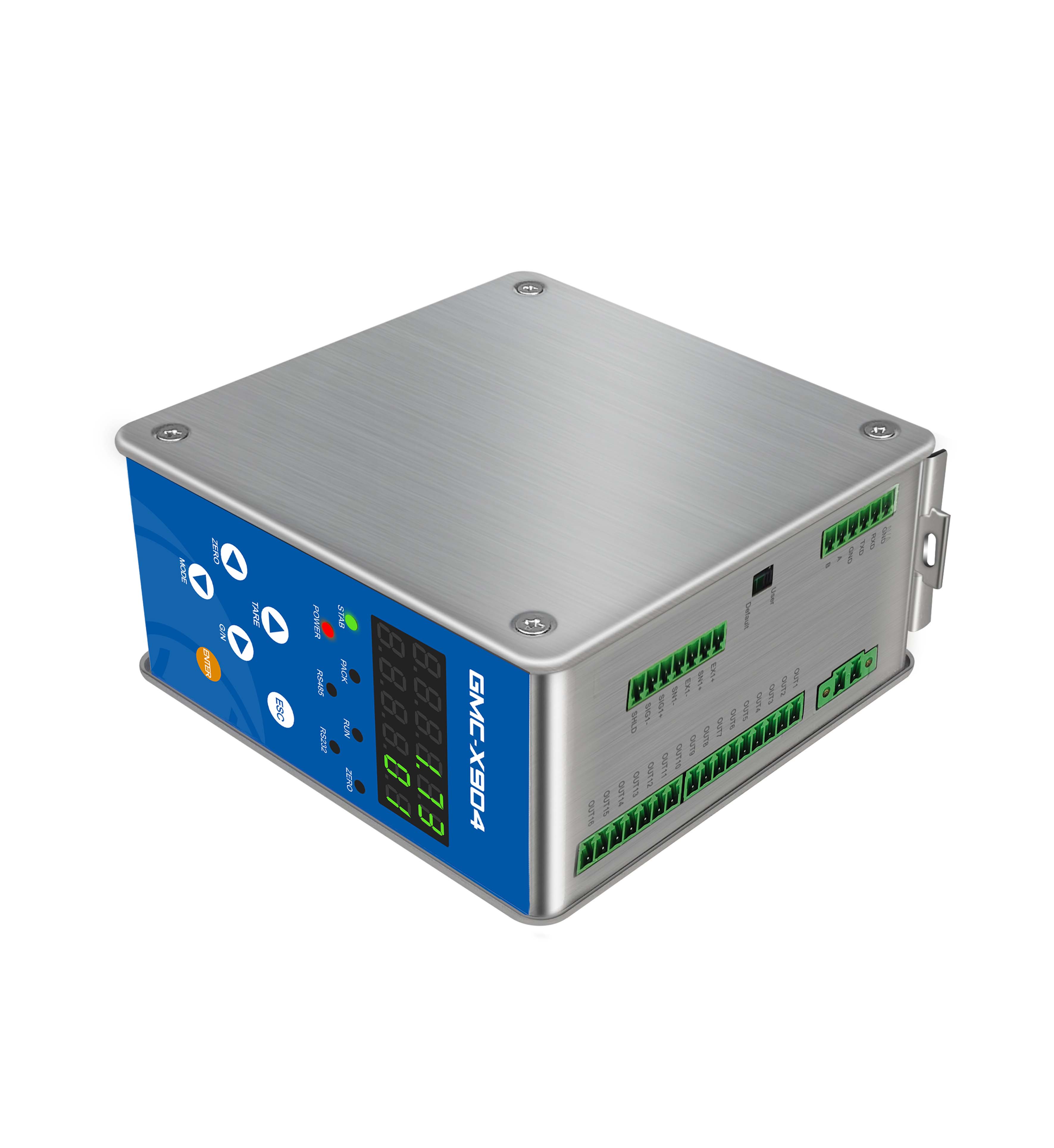

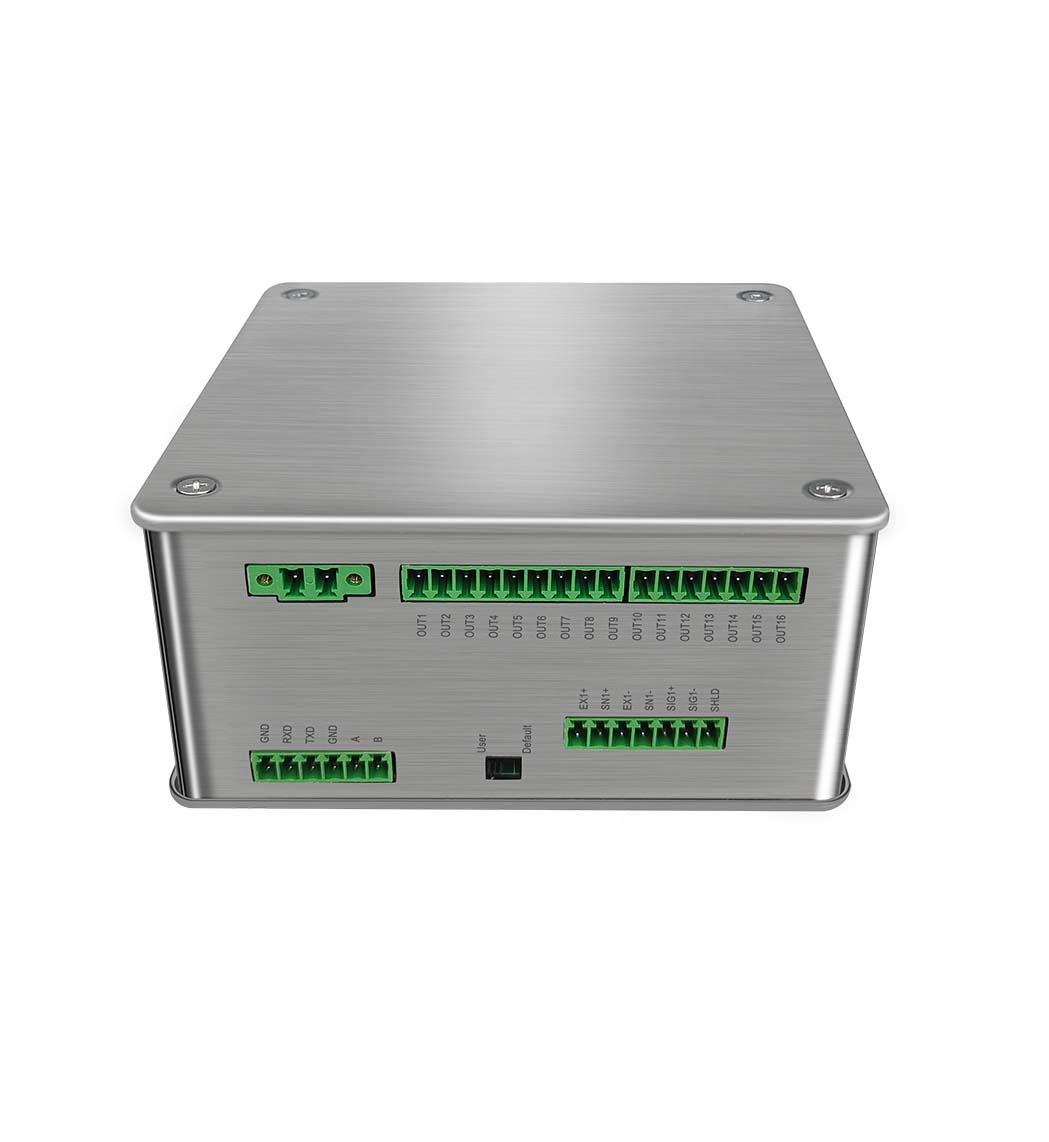

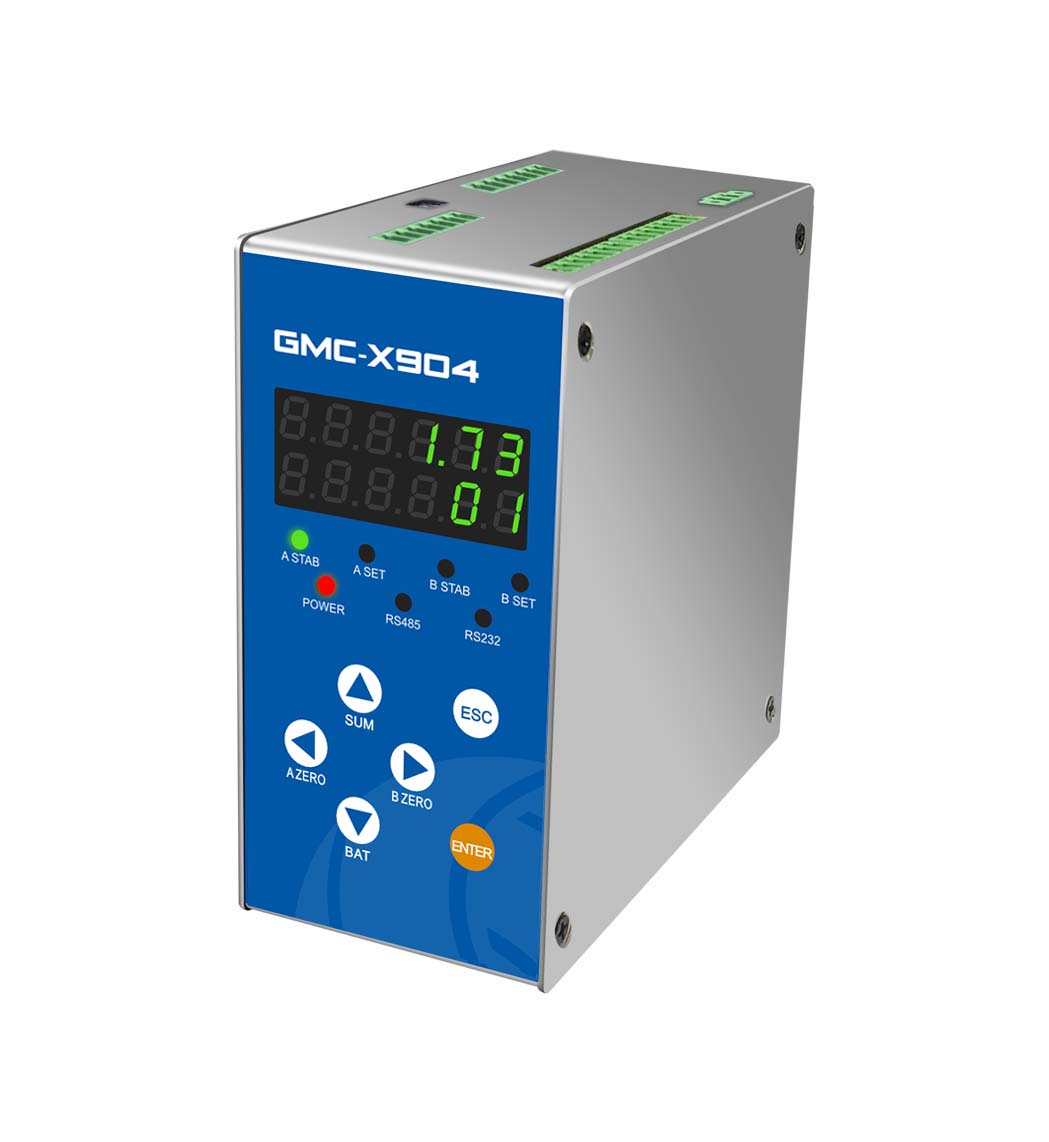

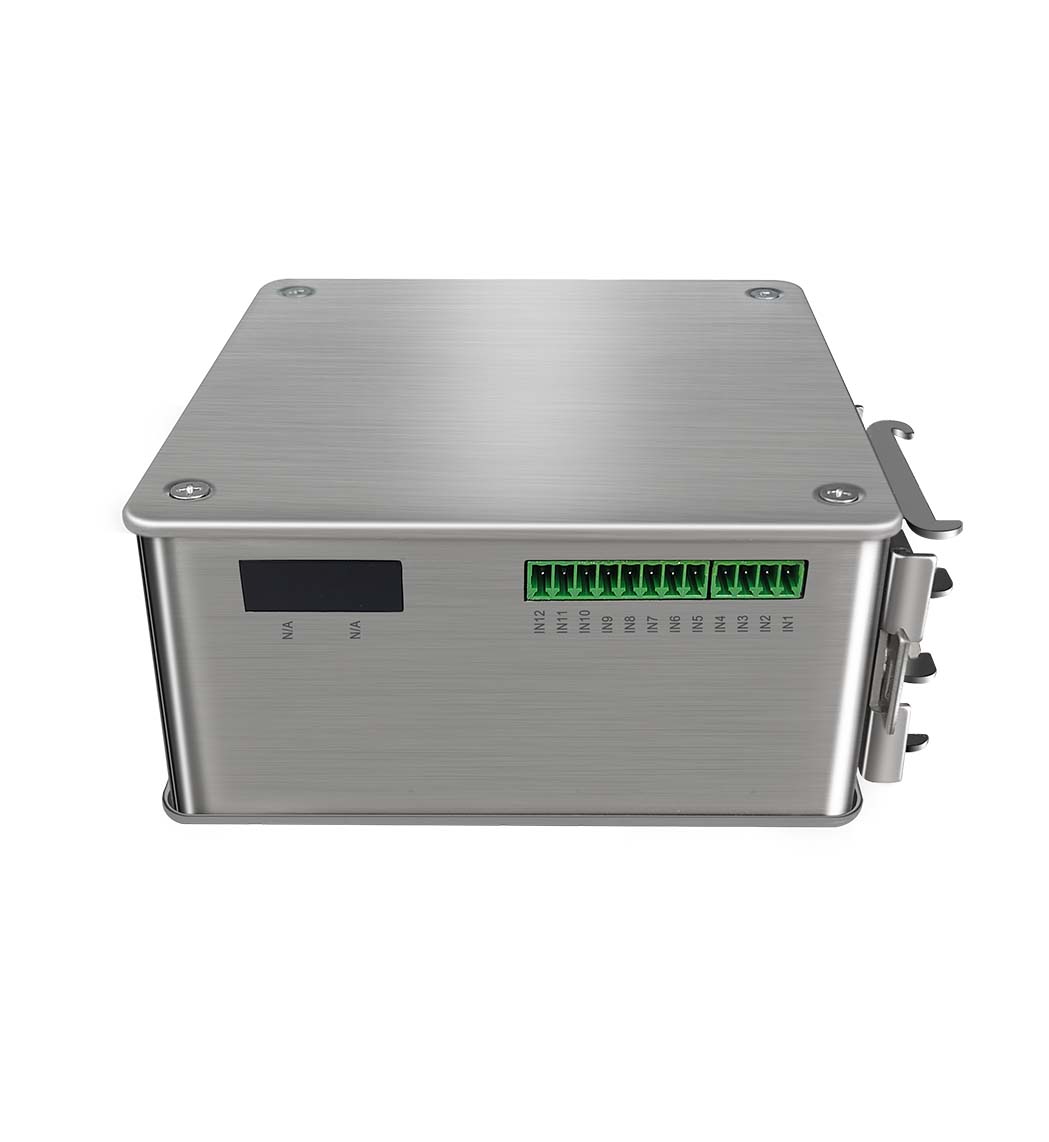

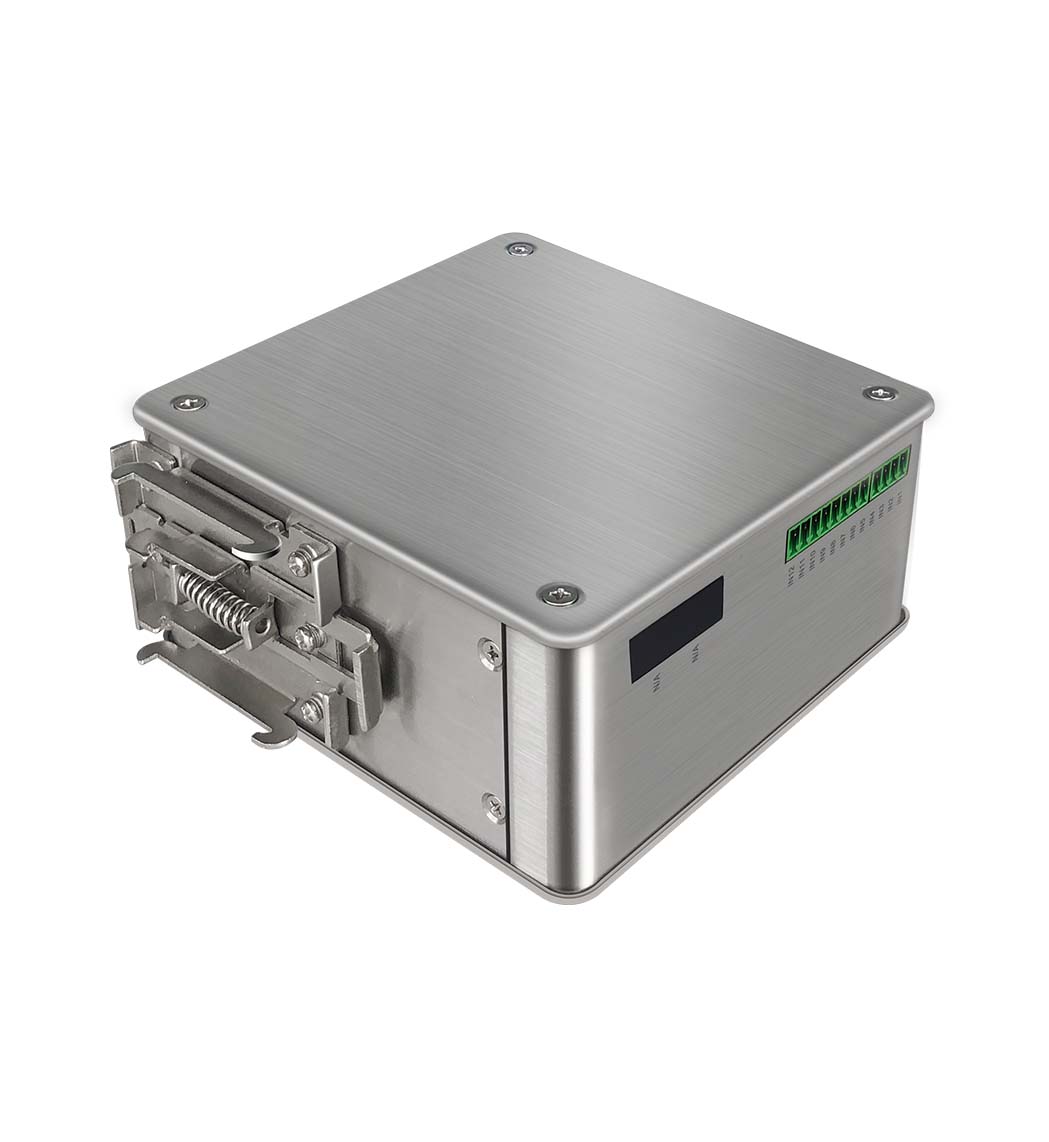

Packing Controller GMC-X904-2/D
GMC-X904-2/D single or double hopper packing controller is a DIN rail-mounted weighing controller developed for packaging machines. A stainless steel case provides strong anti-interference capabilities. The new algorithm makes the weighing control faster and more accurate. It can be widely used in feed, chemical, grain, and other industries.
ENQUIRE
IP 65
Highly Integrated
CE Approve
Advanced Digital Filtering
Hardware Highlight
- Stainless steel case with compact design(61*132*126mm);
- RS232 and RS485;
- I/O 12 inputs and 16 outputs;
- Optional: single or dual network port: Modbus TCP/IP;
Software Highlight
- Support hopper/non-hopper/big bag/bulking scale structure;
- Multiple working modes: pneumatic/motor feeding/discharging;
- Clamping and loosening bag modes: Pneumatic, stepping motor, motor single-limit, motor double-limit optional;
- Batches setting function;
- Material level control function;
- I/0 logic programming control function;
Weighing and Peripheral Functions
- Multiple digital filtering,
- Automatic zero tracking;
- Auxiliary pulse;
- Multiple bag tapping modes;
- Sewing machine control;
- Discharge vibration;
- Conveyor control;
 |
 |
