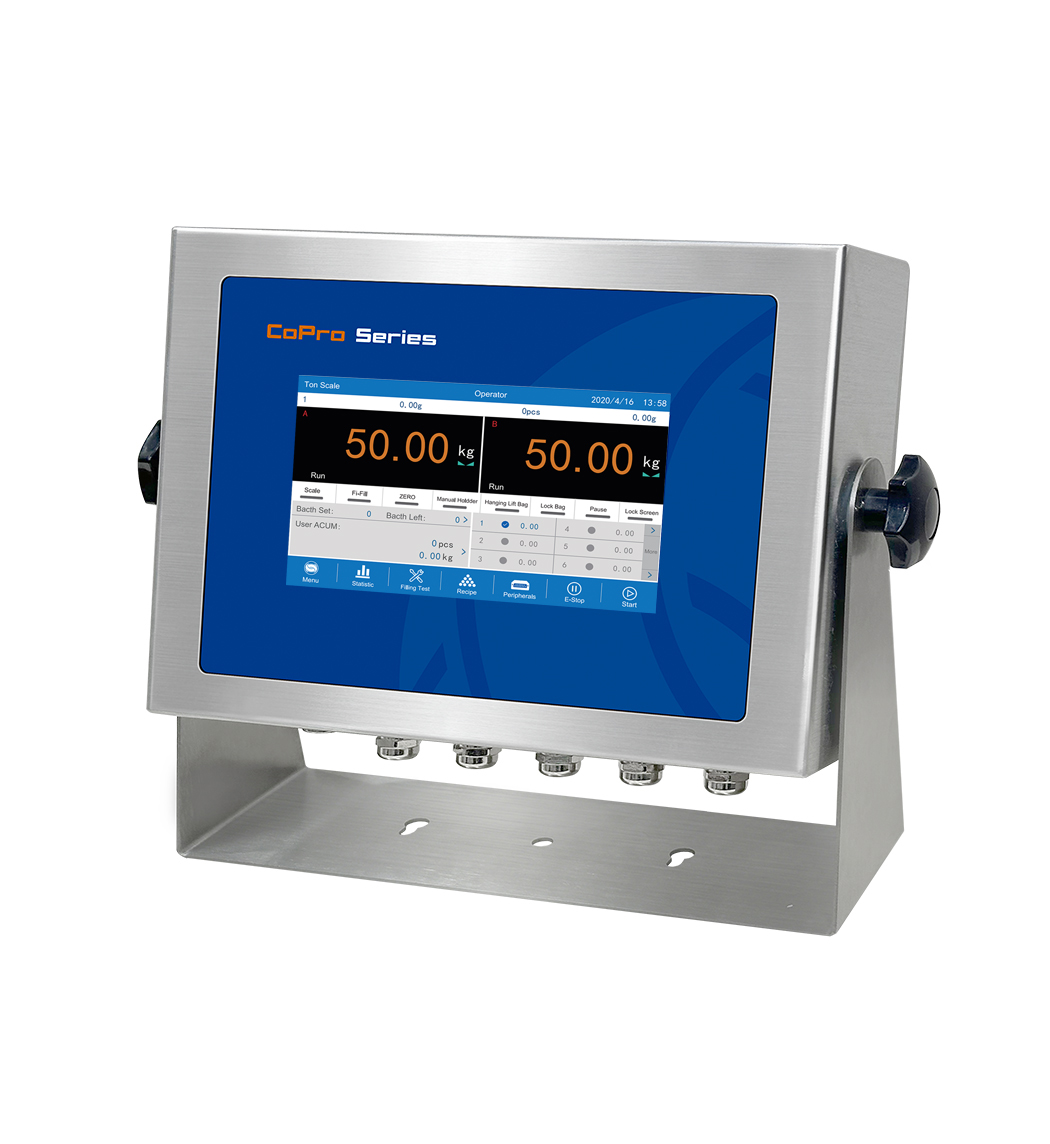

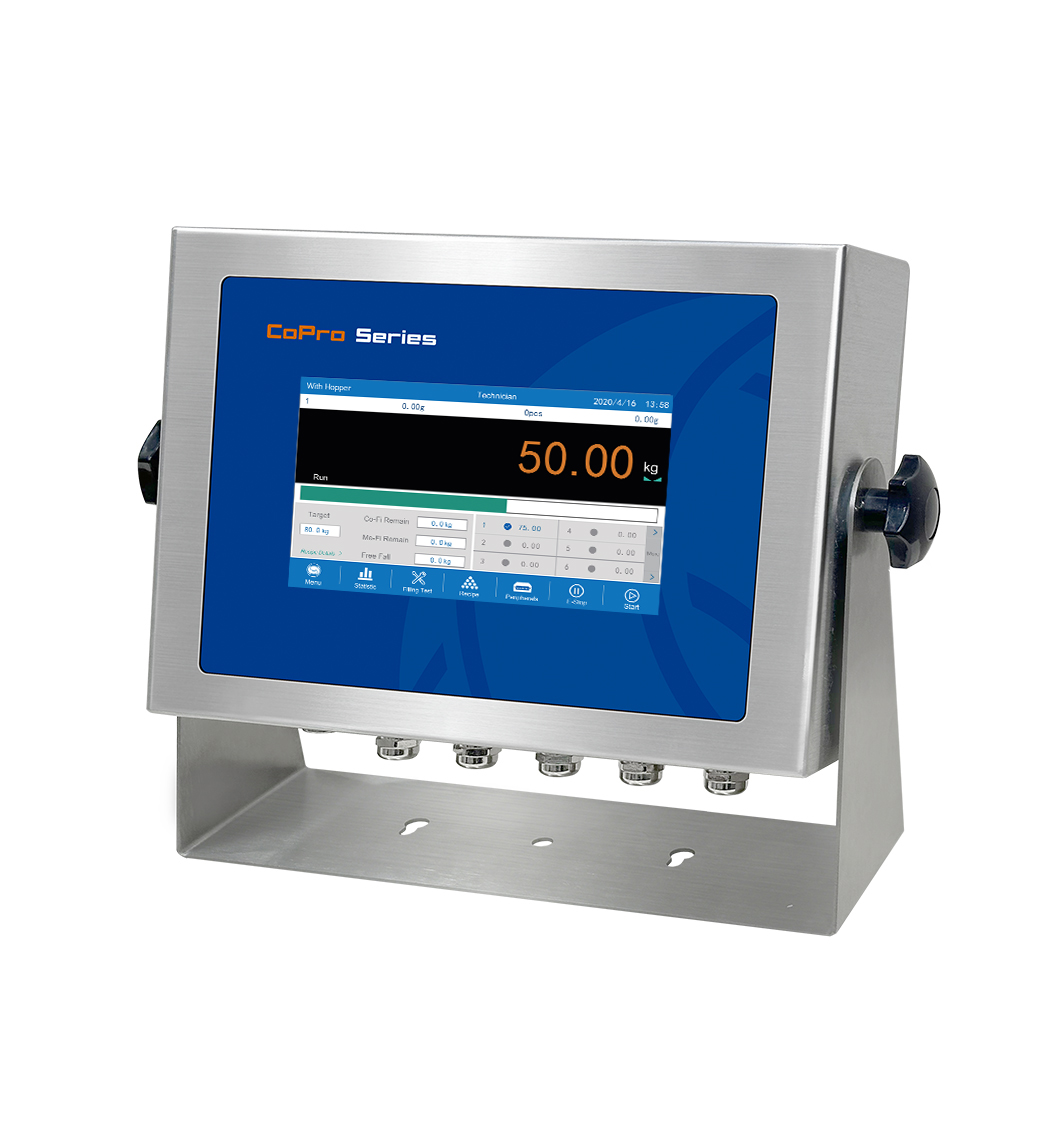

Weighing Controller

Various Installation

• Panel-mount;
• Harsh dest/wall mount;

Application Software

    1. Single hopper packing

    2. Double hopper packing

    3. Reduce weight method packing

    4. Bulk scale

    5. Liquid filling

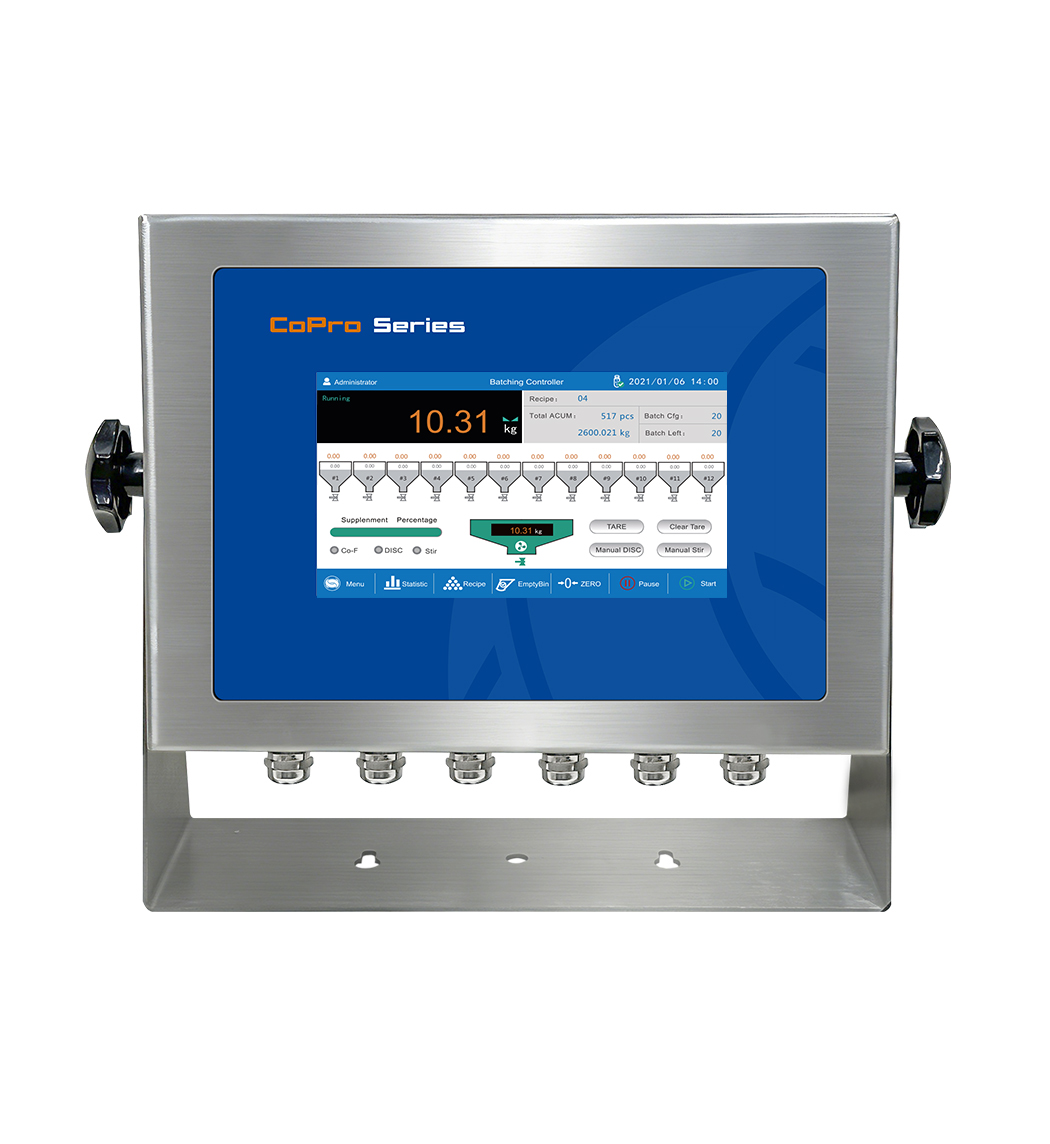

    6. Batching scale

Robust & Durable

• Metal case with SS306 and aluminum provides better EMC protection and screen protection；
• 6mm front panel with rubber seal strip makes it fit control box well, which improves the sealing and dust-proof performance；
• MCU CPU with quad-core (Linux) for fast images and data processing ability;
• Support mouse and keyboard control by USB connection;
• Equipped with GMA-X1 automatic traction module, reduce workforce cost, improve working efficiency.
• 500mA over-current protection for IO port.

User-friendly Design

• 7-inch touch screen, interactive design, and easy operation;
• Multi-Mode: With Hopper, No Hopper, Big Bag Scale, Valve Scale, PLC;
• Automatic drop correction function, feeding speed adaptive function;
• Starting Patting mode when filling material to shape bags by setting relevant parameters;
• Record the weight of every pack, million data storage and export.

Multiple Communication Methods

• RS232+RS485 for connecting PC, PLC, Printer, Label Printer, Remote Display, Code Printer, or other external devices, for reading and setup remotely;
• 12 Input/16 Output for starting, stopping, unloading, clamping/loosening bags, etc.;
• Modbus TCP for connecting PC, PLC, Printer, etc., for reading remotely;
• USB for importing and exporting recipes, I/O function communication parameters and other working parameters, upgrading system software, customizing boot screen, etc.;
