Manual Batching & Formulation Controller GMC-P7 F8
The GMC-P7 F8 is a desktop high-precision manual batching controller equipped with a 7-inch touch screen. The intuitive touchscreen and visual batching process make it easy to use. The upgraded weighting filtering algorithm and optimized A/D conversion speed ensure stable and efficient weighting.
ENQUIRE
IP 65
Man Machine Design
High Accuracy
EMC Testing Passed
CE Approve
PRODUCT ENQUIRE
Software Applications
- Manual batching and formulation

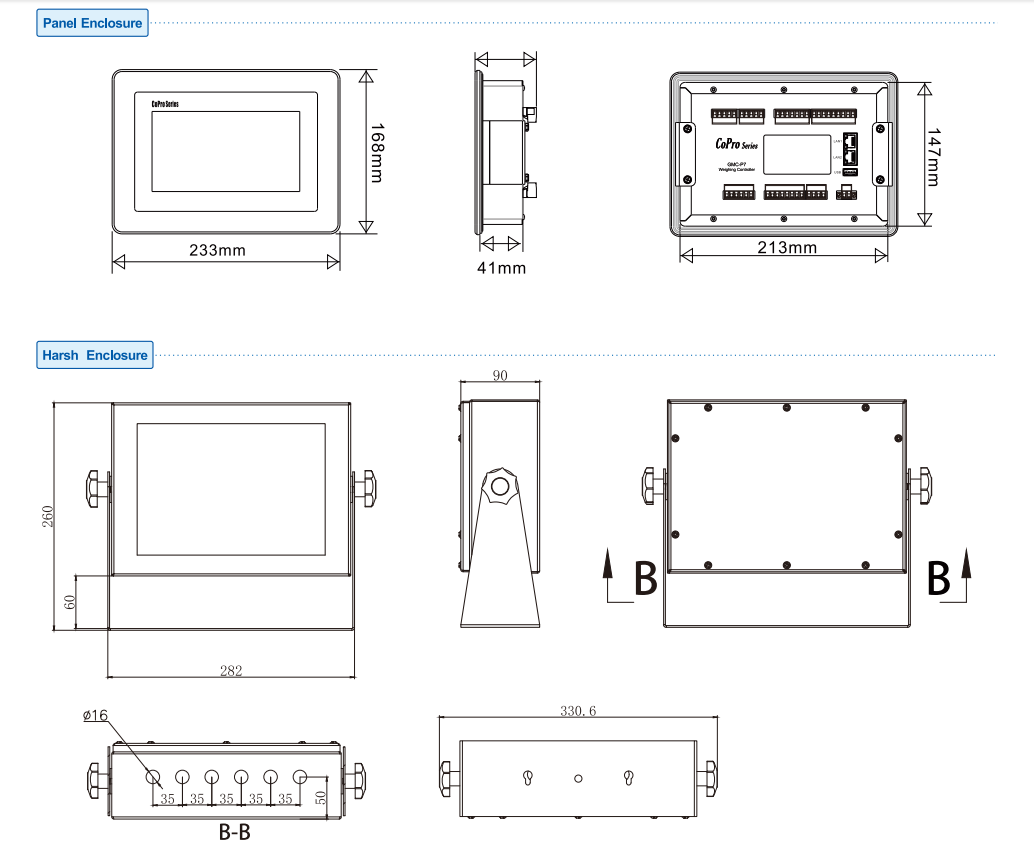

Various Installation
- Panel-mount;
- Harsh dest/wall mount;
Versatile Features
- 10 recipes to switch;
- The visual process of manual batching ;
- 1 million entries storage, USB for exporting data;
- Standard 5 IN/5 OUT I/O ports;
- IO testing function and serial port testing function;
- Automatic taring after startup;
- Multilevel user authority management;
- Dual filtering function;
- Boot screen customization;
User-friendly Design
- 7-inch touch screen, intuitive display, better interaction;
- The boot screen can be customized;
- Micro printer and EPSON serial printer can be connected;
- Multilevel user authority management
Robust & Durable
- SS306 stainless steel case and aluminum front panel, IP65；
- Panel mount: 6mm front panel with rubber seal strip makes it dust-proof；
 |
